DC gear-motor 80ZYTE-12/JW-5B
direct currentwormright angle

DC gear-motor - 80ZYTE-12/JW-5B - Zhejiang Dongzheng Motor Co., Ltd. - direct current / worm / right angle
DC gear-motor - 80ZYTE-12/JW-5B - Zhejiang Dongzheng Motor Co., Ltd. - direct current / worm / right angle
DC gear-motor - 80ZYTE-12/JW-5B - Zhejiang Dongzheng Motor Co., Ltd. - direct current / worm / right angle - image - 2
DC gear-motor - 80ZYTE-12/JW-5B - Zhejiang Dongzheng Motor Co., Ltd. - direct current / worm / right angle - image - 3
DC gear-motor - 80ZYTE-12/JW-5B - Zhejiang Dongzheng Motor Co., Ltd. - direct current / worm / right angle - image - 4
DC gear-motor - 80ZYTE-12/JW-5B - Zhejiang Dongzheng Motor Co., Ltd. - direct current / worm / right angle - image - 5
Add to favorites
Compare this product

Characteristics

Motor type
DC, direct current
Type
worm
Shaft orientation
right angle
Shaft configuration
solid-shaft
Power
100 W...500 W, 1 kW...2 kW
Voltage
24 V, 12 V
Torque
20 - 50 Nm, 200 - 500 Nm
Performance
high-torque
Product applications
for tarp systems
Gear ratio

90 unit

Operating temperature

Max.: 65 °C
(149 °F)

Min.: -40 °C
(-40 °F)

Rotational speed

Max.: 57 rpm
(358.1416 rad.min-1)

Min.: 47 rpm
(295.3097 rad.min-1)

Description

Characteristics
Tarp Motor & Winch Motor 3.0 ~ 3.5HP 80ZYTE-12/JW-5B with Chrome Cover
Tarp Motor & Winch Motor 3.0 ~ 3.5HP 80ZYTE-24/JW-5B with Chrome Cover
Tarp Gear Motor 1.8HP 80ZYT-12/JW-5B with Chrome Cover
Tarp Gear Motor 1.8HP 80ZYT-24/JW-5B with Chrome Cover
Tarp Gear Motor 2.1HP 80ZYTS-12/JW-5B with Chrome Cover
Tarp Gear Motor 2.1HP 80ZYTS-24/JW-5B with Chrome Cover

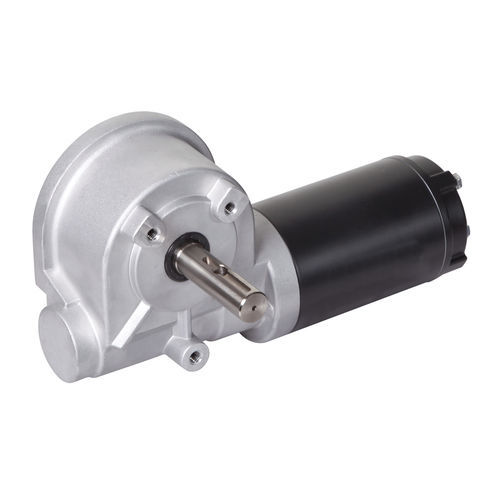

Heavy Duty 2.1HP 90:1 Tarp Motor 164903 (Side Roll Systems)

Dump Truck Tarp Motor (Canvas Engine, Tipper Sheeting Motor, Dura-Torque Gearmotor, Durabuilt Motor), fits most automatic tarp systems.

2.1HP TARP MOTOR SPECS AND FEATURE (GEAR RATIO 90:1)
  • 3 year warranty
  • Hi-torque, direct drive 12VDC (or 24VDC) motor
  • No-load current 13.786A @ no-load speed 57 rpm
  • Maximum Efficiency 32.47%
  • 47 rpm @ Max. efficiency
  • 41.19 N·m (360 in-lbs) @ Max. efficiency
  • Output Power 200W @ Max. efficiency
  • Stall Torque 225.29 N·m (Lock-rotor Torque)
  • Epoxy sealed gearbox maintains lubrication
  • Sealed drive shaft and encased bearing prevents contamination
  • Chrome/plastic cover and fasteners included
  • 100% tested for quality control

Description
  • Includes technical drawings and product images for model 80ZYT/80ZYTE variants
  • Compatibility / Replacements: Aero PowerPlus & RS/RA; Donovan 61G/61L/4422; Pulltarps 517-0906/517-0909; Roll-Rite 1030/1031; SHURCO 1703823; Superwinch 90-33319/90-33295, 90-33320/90-33318, 90-33294; TARPS AND BEYOND 1000XT/2000XT; TSI Apache, Tomahawk, Enforcer; US Tarps Covering America 11521/13655

caractéristiques / spécifications techniques
  • Models / variants referenced: 80ZYTE-12/JW-5B; 80ZYTE-24/JW-5B; 80ZYT-12/JW-5B; 80ZYT-24/JW-5B; 80ZYTS-12/JW-5B; 80ZYTS-24/JW-5B
  • Power range examples shown: 1.8HP, 2.1HP, 3.0~3.5HP (models vary)
  • Gear ratio shown: 90:1 (for 2.1HP heavy duty variant)
  • Voltage: 12VDC standard, 24VDC option
  • No-load speed: 57 rpm
  • No-load current: 13.786 A
  • Maximum efficiency: 32.47% at ~47 rpm
  • Torque at max efficiency: 41.19 N·m (360 in-lbs)
  • Output power at max efficiency: 200 W
  • Stall/lock-rotor torque: 225.29 N·m
  • Gearbox: epoxy sealed to maintain lubrication
  • Shaft and bearings: sealed/encased to prevent contamination
  • Cover: chrome/plastic cover and fasteners included
  • Quality: 100% tested
  • Warranty: 3 years
  • Designed to replace multiple OEM tarp motor part numbers and fit most automatic tarp systems
