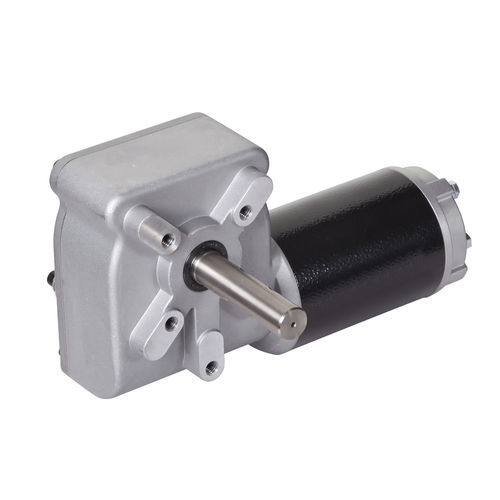

Tarp system gear-motor 80ZYT-12/JW-7A

DCwormright angle

Tarp Motor 164903 2.1HP 90:1 12V Motor Assembly (Side Roll Systems) Tarp Gear Motor w/Chrome Cover Canvas Top Truck Motors Dump Truck Tarp Motor / Canvas Engine ( Tipper Sheeting Motor, Dura-Torque Gearmotor ), fits most automatic tarps systems. TARP MOTOR 80ZYT-12/JW-7A SPECS AND FEATURE (GEAR RATIO 90:1): Tarp Gear Motor w/Chrome Cover Dump Truck Tarp Motor / Canvas Engine ( Tipper Sheeting Motor, Dura-Torque Gearmotor ), fits most automatic tarps systems. 600W TARP MOTOR 80ZYT-12/JW-7A SPECS AND FEATURE (GEAR RATIO 90:1): 3 years warranty Hi-torque, direct drive 12VDC (or 24VDC) motor (output torque 600 in-lbs) 90:1 gear ratio. No-load Speed 55RPM / Rated Speed 40 RPM (+/-5RPM) Power 600W ( L = 240mm ) or 900W ( L = 270mm, Model 80ZYTS-12/JW-7A ) Epoxy sealed gearbox maintains lubrication. 2-1/2" x 3/4" extended output shaft fits wide range of tarp systems. Sealed drive shaft and encased bearing prevents contamination. Chrome/plastic cover and fasteners included. 100% tested for quality control. Optional 24V DC, Gear Ratio 60:1 or 45:1, 900W/1.2HP, 1200W/1.5HP, 2.0HP, 2.5HP Ambient temperature of minus 40° available upon request Replaces Aero Power Plus, Donovan 1704878, 1800716, 1801965*, 1802061, 1802066, Roll-Rite #1030/1031, US Tarp #13732, 13957, 15275, 15938, 15364, 13655; Pulltarps 517-0906/517-0909; SHUR-CO 1802066,1703823; SuperWinch 90-33319/90-33295; Tarps and Beyond 1000XT/2000XT; Buyers Products 5541095,5543095, 5543895, 5543965/5541065, TSI Apache, Tomahawk, Enforcer, Automann 577.99701, 577.99701HD, 577.99701P, 577.99702P, 577.99704P.
