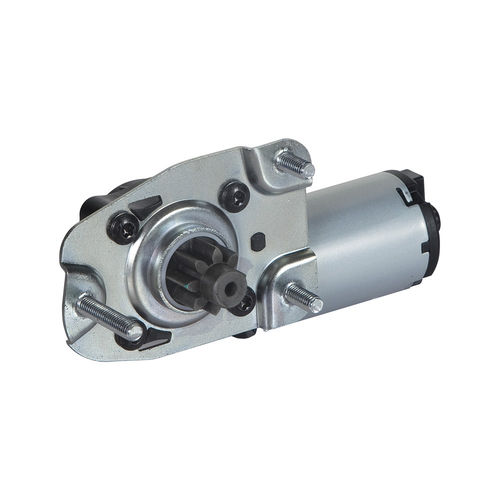

DC gear-motor 38ZY-38JWpermanent magnetwormright angle
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Torque
- 20 - 50 Nm
- Performance
- low-noise, high-torque
- Product applications
- industrial, for automation, for automobiles, for robots, for doors
- Other characteristics
- compact, maintenance-free, low-speed, with encoder
- Gear ratio
413 unit
Description
Characteristics
Automobile Compact Size High Torque Lift Worm Gear Motor 38ZY-38JW SPECS.:
Voltage 13.5VDC
No-Load Current <=2A
Stall Current <=22A
No-Load Speed 10RPM
Stall Torque 30N.m
Gear Ratio 413/1
Operating temperature - 40 ~ +85°C
Noise <=42dB @500mm Distance
With/Without Magnetic Encoder
Weight <=0.6kg
VIDEO
