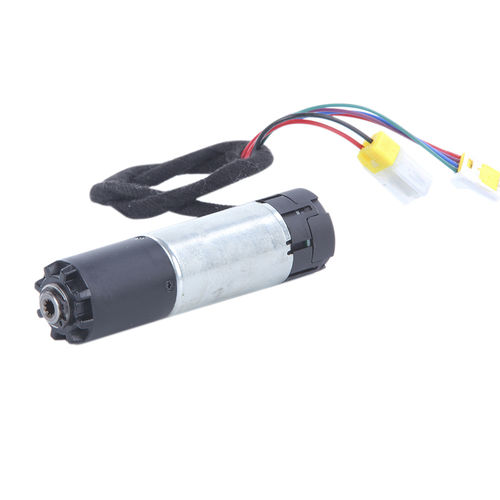

DC gear-motor 29JXL22G/30ZY80H-1265
permanent magnetplanetaryhelical

DC gear-motor
DC gear-motor
DC gear-motor
DC gear-motor
DC gear-motor
Add to favorites
Compare this product


Characteristics

Motor type
DC, permanent magnet
Type
planetary, helical
Shaft orientation
concentric
Shaft configuration
hollow-shaft
Power
10 W...50 W, 50 W...100 W
Voltage
12 V
Torque
1 - 5 Nm
Product applications
for lifting applications, for vehicles, for automobiles, for gates
Other characteristics
compact, low-noise, high-torque, maintenance-free, two-stage, low-noise
Gear ratio

22 unit

Description

Automobile Tailgate DC Gear Motors 12V high torque silent automobile electric tail door motor with micro metal gearbox DC Planetary 1W-99W Electric Gear Motor For Automobile Power Lift Gate Auto Electric Tail Gate Lift DC Gear Motor Automobile Tail Gate Motor 29JXL22G/30ZY80H-1265 SPECS.: A) Technical Specs.: 1. Voltage 12VDC 2. No-Load Speed 6500+/-500rpm 3. No-Load Current 0.65A Max. 4. Rated Torque 800g.cm 5. Rated Speed 5200+/-500rpm 6. Rated Current 4.55A Max. 7. Stall Torque 0.25N.m 8. Stall Current 18A 9. Operation Temp. -40°C ~ +80°C 10. Humidity 10~95% 11. Protection Class IP40 Gearbox Data: Gear Ratio 22/1 22 Inner Teeth Spline Hollow Shaft B) Life Testing 1. One Duty Cycle CW:6s/ON 20s/OFF; CCW:6s/ON 20s/OFF 2. Life Request: 180000 Duty Cycles Min. 3. Stall Running: 5s/ON, OFF 30s, 1000 Duty Cycles C) EMC – EN55014-1:2006+A1:2009+A2:2011 D) Noise Under No-Load, Voltage 6V~12V, 300mm Distance Vibration Level: 2.5mm/s Max. Noise <=52dB (Ambient Noise 30dB Max.) Spline Tooth Data Tooth Form Standard ISO4156 Modulus 0.3 Tooth 22 Pressure Angle 30° Automobile Tailgate DC Gear Motors
