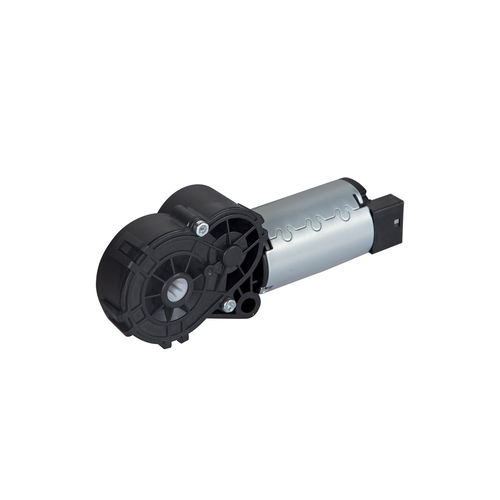

DC gear-motor 38ZY-37JWpermanent magnetwormright angle
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Torque
- 1 - 5 Nm
- Performance
- low-noise, high-torque
- Product applications
- industrial, for medical equipment, for conveyor, for automobiles, for robots, for furniture
- Other characteristics
- compact, with encoder
- Gear ratio
185 unit
Description
Characteristics
Automobile Backrest Gear Motor 38ZY-37JW SPECS.:
Voltage 13.5VDC
No-Load Current <=2A
Stall Current <=20A
No-Load Speed 25RPM
Stall Torque 22N.m
Gear Ratio 185/1
Spline Hollow Shaft, 8 inner teeth
Noise <=42dB @500mm Distance
With/Without Magnetic Encoder
Weight <=0.4kg
