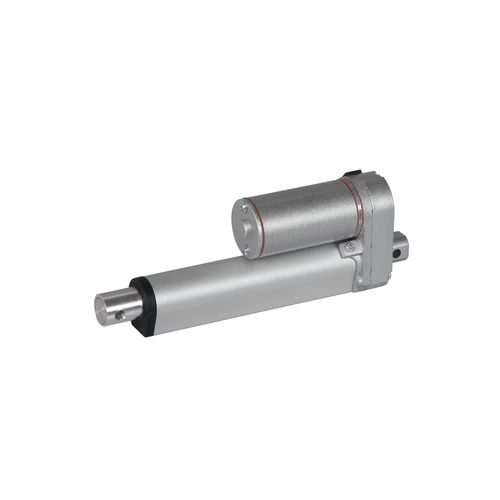

Linear actuator 38ZYelectricspur gearaluminum
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Technology
- spur gear
- Material
- aluminum
- Motor
- DC
- Voltage
- 24 V, 12 V, 36 V, 48 V
- Protection class
- IP65, IP54, IP67
- Applications
- for medical equipment, for lifting, for vehicles, for furniture
- Other characteristics
- compact, with parallel motor, lightweight, with integrated limit switch
- Stroke
Max.: 800 mm
(31.496 in)Min.: 20 mm
(0.787 in)- Force
Max.: 2,300 N
1,200 N
Min.: 200 N
- Speed
Max.: 40 mm/s
Min.: 2.2 mm/s
- Ambient temperature
Max.: 65 °C
(149 °F)Min.: -20 °C
(-4 °F)
Description
DC linear actuator
Aluminum alloy shell, compact design, light weight, with built-in micro switch to automatically stop after stroke; customized stroke, easy to install, easy to operate; Can replace hydraulic pressure, air pressure and other traditional mechanical push and pull products; widely used in aircraft, ships, luxury car seat back rest
lifting, massage chair massage bed, fire equipment,medical equipment, furniture and other products.
Linear Actuator General TECNICAL DATA:
Voltage 12 V DC, 24V DC, 36V DC, 48V DC
Load Capacity up to 1200N
DC motor length: 73mm, 79mm, 85mm
Standard Stroke 20 ~ 800mm ( Option Upon request )
Max. life cycles: 50000
Duty Cycle 20% or 10%, Max. 2 min ON/18 min OFF
Operation Temperature -20°C~+65°C
IP rating: IP54, IP65, IP67
Able to make customized types.
