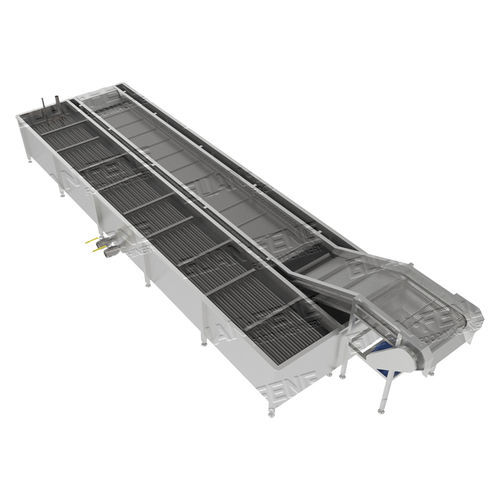

Ice water pre-cooler GBL series

for the food industrywater-cooledstainless steel

This equipment is made of SUS304 stainless steel except for standard parts such as motors and electrical appliances Equipment feature Ice water pre-cooling machine can pre-cool food effectively, so it can improve quality, stabilize quality, improve efficiency, save labor, reduce energy consumption and reduce production cost in the subsequent quick-freezing process. Ice water pre-cooling machine is composed of ice water cooling tank and conveying tank, and the material and ice water are used to exchange heat in opposite directions to improve cooling efficiency. Vertical pipeline and water pump circulation to transfer heat, cooling tank is equipped with stainless steel seamless tube heat transfer coil (evaporation discharge tube), transmission adopts cycloidal pin gear speed reducer, cooling time is variable frequency regulation; The equipment is made of stainless steel (SUS304), except the reducer and electrical parts etc. It is durable, stable, easy to operate and maintain. Applications Deep cooling for blanched fruits and vegetables to reduce the central temperature of food to about 10 ~ 15℃
