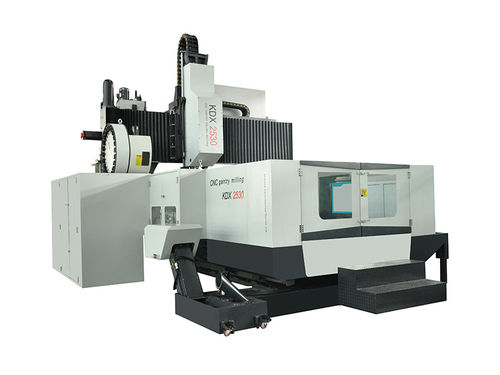

3-axis CNC machining center KDXM2230/2530

verticalgantryBT 50

1. The CNC gantry machining center is a high-end technology-intensive product with high quality, high precision and high performance carefully designed and manufactured by our company for you. 2. The front and back movement direction of the worktable is the X axis, the left and right movement direction of the beam is the Y axis, and the up and down movement direction of the spindle ram is the Z axis. Item - Unit - KDXM2230 - KDXM2530 Work table - - - Table size - mm - 2000×3000 - Gantry gate width - mm - 2300 - 2500 T-slot (Number x width x spacing ) - mm - 9×22×200 - 11×22×180 Processing range - - - Spindle nose to table surface distance - mm - 250-1250 - Spindle system - - - Spindle driven mode - - Belt type - Spindle rated torque - Nm - 143 - Feed system - - - X/Y/Z motor torque - Nm - 36/36/36 X/Y/Z rapid movement speed - m/min - 10/12/12 - 8/10/12 X/Y/Z transmission ratio - - 2.5/2/2 - Precision - - - X/Y/Z repeat positioning accuracy - mm - 0.012/0.012/0.010 - 0.016/0.012/0.010 Tool magazine system - - - Max. tool diameter (adjacent/next to empty) - mm - Ф112/Ф200 - Max. tool length - mm - 300
