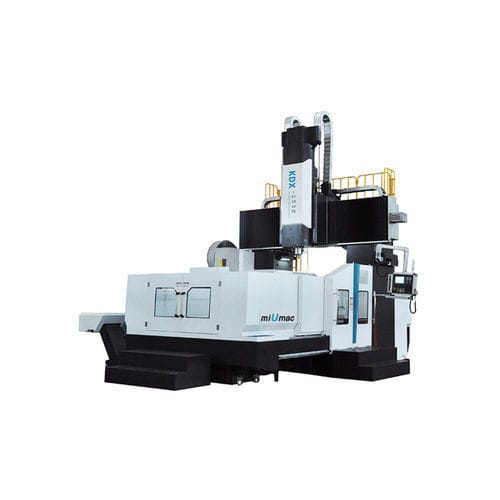

3-axis CNC machining center KDX2540/3260/4280

verticalgantryBT 50

The front and back movement direction of the worktable is the X axis, the left and right movement direction of the beam is the Y axis, and the up and down movement direction of the spindle ram is the Z axis. The X and Y axes adopt linear guide rails, and the Z axis adopts rectangular guide rails. The accuracy of the machine tool is stable, the performance is reliable, and the operation is convenient and flexible. Item - Unit - KDXM2540 - KDXM3260 - KDXM4280 Work table - - - - Table size - mm - 2200×4000 - 2700×6000 - 3000×8000 Gantry gate width - mm - 2500 - 3200 - 4200 T-slot (Number x width x spacing ) - mm - 11×22×180 - 11×28×250 Processing range - - - - Spindle nose to table surface distance - mm - 250-1250 - 250-1500 - Spindle system - - - - Spindle driven mode - - Belt type - Belt type - Belt type Spindle rated torque - Nm - 143 - 140 - 140 Feed system - - - - X/Y/Z motor torque - Nm - 36/36/36 - 53/38/38 - X/Y/Z rapid movement speed - m/min - 8/10/12 - 6/10/8 - 6/8/8 X/Y/Z transmission ratio - - 2.5/2/2 - 5/2/2 - 8/4/2 Precision - - - - X/Y/Z repeat positioning accuracy - mm - ≤0.016/0.012/0.010 - ≤0.020/0.012/0.010 - ≤0.030/0.016/0.010 Tool magazine system - - - - Max. tool diameter (adjacent/next to empty) - mm - Ф112/Ф200 - Max. tool length - mm - 300
