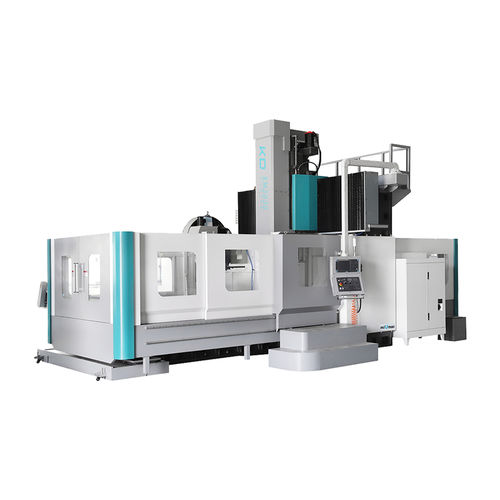

3-axis CNC machining center KDXM2030

verticalgantryBT 50

CNC Gantry Machining Center The CNC gantry machining center is a high-end technology-intensive product with high quality, high precision and high performance carefully designed and manufactured. Item - KDXM2030 - Unit Work table -   -   Table size - 1800×3000 - mm Gantry gate width - 2000 - mm Table load  - 8 - t T-slot (Number x width x spacing ) - 9×22×180 - mm Processing range -   -   X travel - 3200 - mm Y travel - 1800 - mm Z travel - 800 - mm Spindle nose to table surface distance  - 190-970 - mm Spindle system  -   -   Spindle driven mode - Belt type -   Spindle speed  - 6000 - rpm Spindle rated power  - 15 - kW Spindle rated torque - 143 - Nm Taper of spindle bore  - BT50 -   Feed system -   -   X/Y/Z motor torque - 36/36/36 - Nm X/Y/Z cutting feed rate  - 1-5000 - mm/min X/Y/Z rapid movement speed  - 10/12/12 - m/min X/Y/Z transmission ratio - 2.5/1/1 -   Precision -   -   X/Y/Z positioning accuracy - ≤0.020/0.020/0.016 - mm X/Y/Z repeat positioning accuracy - ≤0.012/0.012/0.010 - mm Tool magazine system  -   -   Tool magazine capacity - 24 - pcs Max. tool diameter (adjacent/next to empty) - Ф112/Ф200 - mm Max. tool length - 300 - mm Max. tool weight - 18 - kg Others  -   -   CNC system - FANUC 0i MF（5） -   Machine weight  - 22 - t
