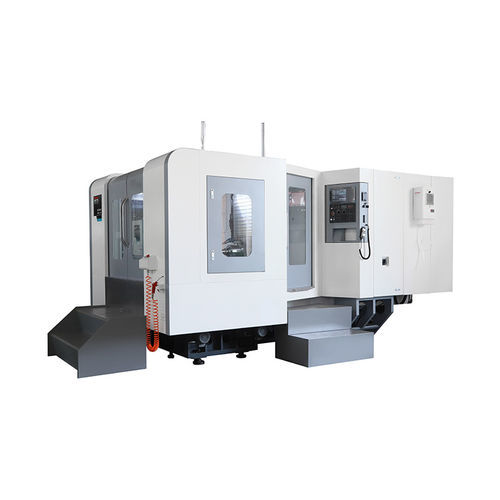

3-axis CNC machining center KDHM630L/630D/800D/1000DhorizontalBT 5040 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Spindle mount
- BT 50
- Number of tool stations
- 40 tools
- Certifications
- ISO 9001
- Applications
- for the automobile industry, for molds, for the aeronautical industry, for small parts production
- Other characteristics
- high-rigidity
- X travel
1,000 mm, 1,050 mm, 1,200 mm, 1,700 mm
(39.37 in, 41.34 in, 47.24 in, 66.93 in)- Y travel
750 mm, 850 mm, 1,200 mm
(29.53 in, 33.46 in, 47.24 in)- Z travel
900 mm, 950 mm, 1,050 mm, 1,200 mm
(35.43 in, 37.4 in, 41.34 in, 47.24 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Power
15 kW, 18.5 kW
(20.39 hp, 25.15 hp)- Work feed X-axis
24 m/min
- Work feed Y-axis
24 m/min
- Work feed Z-axis
24 m/min
- Table load capacity
1,000 kg, 1,200 kg, 2,000 kg
(2,205 lb, 2,646 lb, 4,409 lb)- Tool weight (max)
18 kg
(39.7 lb)- Positioning accuracy
0.008 mm, 0.01 mm
(0.00031 in, 0.00039 in)- Weight
12,000 kg, 12,500 kg, 13,500 kg, 21,000 kg
(26,455.47 lb, 27,557.78 lb, 29,762.41 lb, 46,297.08 lb)
Description
1. The bed adopts an integrated bed structure design with reasonable M-shaped ribs to minimize cutting vibration, and has torsion resistance, vibration damping and high rigidity.
2. The standard configuration is a worktable with a minimum graduation unit of 1°, which has high positioning accuracy and good accuracy retention.
Item - Unit - KDHM630L - KDHM630D - KDHM800D - KDHM1000D
Travel
Distance from table center to spindle nose - mm - 130-1030 - 200~1150 - 200~1250 - 250~1450
Distance from spindle centerline to table surface - mm - 120-870 - 100-950 - 120-1320
Work table
Table size - mm - 630×630 - 630×630 - 800×800 - 1000×1000
T-slot（number×width×spacing） - mm - 5×18×100 - 5×18×125 - 5×18×160 - 7×22×125
Table number - pc - 1 - 1 - 1 - 1
Spindle system
Spindle drive mode - - belt -
Spindle rated torque - Nm - 143 -
Feed system
X/Y/Zaxis rapid feed rate - m/min - 24/24/24 - 24/24/20
X/Y/Z/B axis motor torque - Nm - 36/36/36/12 - 36/36/36/20 -
X/Y/Z axis rail width - mm - 45/45/55 - 55/55/55 -
X/Y/Z axis lead screw specification - mm - 4012/4012/5012 - 5012/5012/5012 - 5012/5012/6320
Tool magazine system
Tool magazine type - - chain - c
Max. tool Dia. (adjacent/adjacent space) - mm - Ф125/Ф230 -
Max. tool length - mm - 400 -
Accuracy
X/Y/Z positioning accuracy - mm - 0.008/0.008/0.008 - 0.008/0.008/0.01
B axis repeat positioning accuracy - Sec. - 4 - 2 -
B axis positioning accuracy - Sec. - 10 -
Table Min.indexing angle - Deg. - 1
VIDEO
Catalogs
No catalogs are available for this product.
See all of Zhejiang KAIDA Machine Tool CO., LTD.‘s catalogsOther Zhejiang KAIDA Machine Tool CO., LTD. products
CNC Horizontal Machining Center
