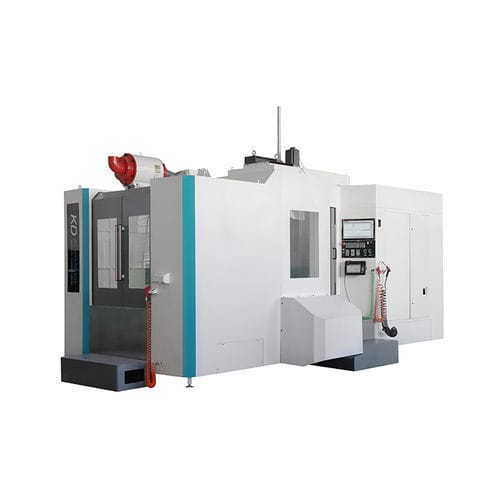

3-axis CNC machining center KDHM630S/800S/1000S

horizontalBT 5040 tools

1. The overall inverted T-shaped bed structure of the machine tool, all the main components, such as the spindle box, bed, column, base, etc., are designed in accordance with the requirements for precision machining, and enjoy excellent cutting performance. 2. The bed adopts an integrated bed structure design with reasonable M-shaped ribs to minimize cutting vibration, and has torsion resistance, vibration damping and high rigidity. Item - Unit - KDHM630S - KDHM800S - KDHM1000S Travel Distance from table center to spindle nose - mm - 200~1150 - 200~1250 - 250~1450 Distance from spindle centerline to table surface - mm - 100-950 - 100-950 - 120-1320 Work table Table size - mm - 630×630 - 800×800 - 1000×1000 T-slot（number×width×spacing） - mm - 5×18×125 - 5×18×160 - 7×22×125 Table number - pcs - 2 - Spindle system Spindle drive mode - - belt - Spindle rated torque - Nm - 143 - Feed system X/Y/Z/B axis motor torque - Nm - 36/36/36/20 - X/Y/Z axis linear guide width - mm - 55/55/55 - X/Y/Z axis lead screw specification - mm - 5012/5012/5012 - 5012/5012/6320 Tool magazine system Tool magazine type - - chain - Max. tool Dia. (adjacent/adjacent space) - mm - Ф125/Ф250 - Max. tool length - mm - 400 - Accuracy X/Y/Z positioning accuracy - mm - 0.008/0.008/0.008 - 0.008/0.008/0.01 B axis repeat positioning accuracy - Sec. - 2 - B aixs positioning accuracy - Sec. - 10 - Table Min.indexing angle - Deg. - 1
