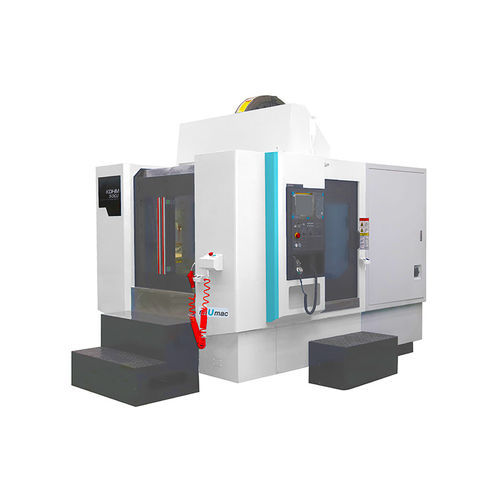

3-axis CNC machining center KDHM500J/500J-1

horizontalBT 40BT 50

1. The X, Y, and Z three-way guide rails all adopt roller-type linear slide rails, which have good wear resistance, lubricity, precision stability and retention. 2. The bed adopts an integrated bed structure design with reasonable M-shaped ribs to minimize cutting vibration, and has torsion resistance, vibration damping and high rigidity. Item - Unit - KDHM500J - KDHM500J-1 Travel - - - Distance from table center to spindle nose - mm - 125-675 - 120-700 Distance from spindle centerline to table surface - mm - 30-680 - 190-890 Work table - Table size - mm - 500×500 - 500×500 Reference aperture - - Φ50H7 - Φ50H7 Table indexing positioning accuracy - Sec. - 8 - ±5 Table indexing repeat positioning accuracy - Sec. - 2 - 5 Table Min. indexing angle - Deg. - 1 - 0.001 T-slot（width×number×spacing） - mm - 5×18×100 - 5×18×100 Table motor power - kw - 3 - 1.8 Feed system - X/Y/Z axis motor torque - Nm - 20/36/36 - 20/20/20 X roller linear guide - mm - 45 - 35 Y/Z roller linear guide - mm - 55/45 - 45/45 X/Z ball screw - - Φ40-12 - Φ40-16 Y ball screw - - Φ50-12 - Φ40-12 X/Y/Z repeat positioning accuracy - mm - ≤0.005/0.004/0.004 - Tool magazine system - Max.tool size (With adjacent tool) - mm - Ф105 - Ф78 Max.tool size (Without ahjacent tool) - mm - Ф200 - Ф120 Max.tool length - mm - 300 - Others - Spindle unloading method - - hydraulic pressure - X/Y/Z axis motor connection method - - Direct connection - Machine sheet metal - - Fully enclosed
