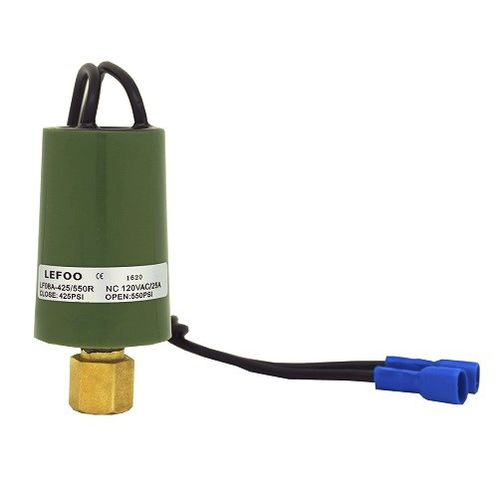

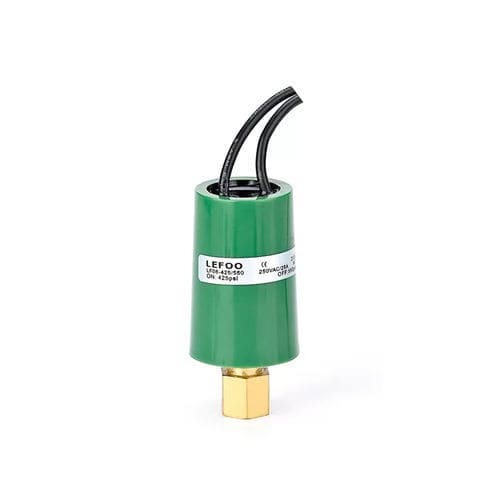

Mechanical pressure switch LF08A
SPDTNONC

Mechanical pressure switch - LF08A - ZHEJIANG LEFOO CONTROLS CO., LTD - SPDT / NO / NC
Mechanical pressure switch - LF08A - ZHEJIANG LEFOO CONTROLS CO., LTD - SPDT / NO / NC
Mechanical pressure switch - LF08A - ZHEJIANG LEFOO CONTROLS CO., LTD - SPDT / NO / NC - image - 2
Mechanical pressure switch - LF08A - ZHEJIANG LEFOO CONTROLS CO., LTD - SPDT / NO / NC - image - 3
Add to favorites
Compare this product
Go to the ZHEJIANG LEFOO CONTROLS CO., LTD website for more information

Characteristics

Technology
mechanical
Contact type
SPDT, NO, NC
Process connection
NPT 1/4, G 1/8, NPT 1/8, R 1/4
Fluid
for water, for oil, for hydrocarbons, for air
Material
brass
Protection level
IP67
Applications
for pump, for the chemical industry
Other characteristics
high-pressure, low-pressure, IP67, high-current
Pressure range

Min.: 0.2 bar
(2.9 psi)

Max.: 45 bar
(652.67 psi)

Switching power: current

10 A, 15 A, 20 A

Process temperature

Min.: -30 °C
(-22 °F)

Max.: 80 °C
(176 °F)

Description

The LF08A switches are fixed set point, factory calibrated pressure switches. It is automatic reset, and can be normally open or normally close contacts. All metallic wetted components make the LF08A switch compatible with a multitude of chemicals in liquid or gas form. It is offered numerous types of electrical terminations from different size and style push on terminals to wire leads with an array of standard industr y connectors. In house machining capabilities allows Lefoo to offer a wide variety of pressure fitting from different thread types and sizes to units with internal deflator and cupper tubbing for sawing operations.
