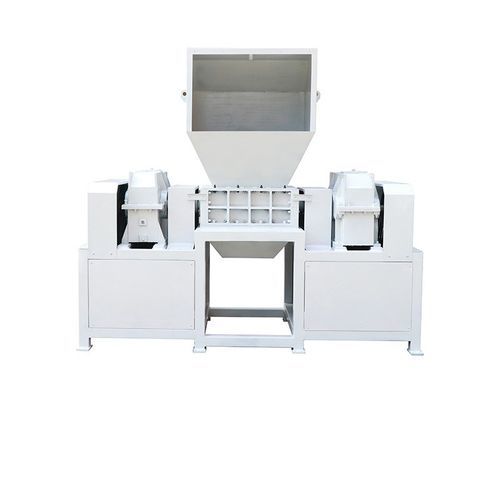

Primary waste crusher-shredder SPT600

for metalsaluminiumferrous

Product Description
Two-shaft shredders are typically used as primary-stage shredders for bulky or mixed solid wastes such as truck tires, steel drums, municipal solid waste (MSW) and electronic waste. The SPT600 is a dual-shaft industrial shredder designed for heavy-duty solid waste processing. Material fed into the cutting chamber is grabbed by hooked cutting blades and sheared into strips; shreds are discharged directly without a screen, yielding random particle sizes. A programmed reverse rotation of the rotor shafts protects the machine from overloads.

Product Features

• Dual-shaft, dual-motor construction for continuous heavy-duty operation
• Hooked cutting blades that grab and shear material into strips
• Direct discharge of shreds without a screen, enabling mixed-size output; blade width customizable
• Programmed reverse rotation to reduce risk of overload and jamming
• Blade thickness: 20 mm

Shredding Materials

• HDD, SSD (hard drives, solid-state drives)
• Plastics
• Tires
• Wood
• E-waste / electronic waste
• Metal scrap
• Other solid waste

Technical Data
Model: SPT600
Shredding construction: dual shafts and dual motors
Blade thickness: 20 mm
Working capacity: 500-1000 kg/h (depending on material)
Typical particle size: approx. 20 mm (random)
Motor power: 37 kW
Voltage: 3 Phase, 380 V / 50 Hz
Shredding speed: 15-20 rpm
Inner shredding width: 600 mm
Machine weight: 1850 kg
Machine dimensions (L×W×H): 2700 × 1260 × 2369 mm
Brand: SUPU
