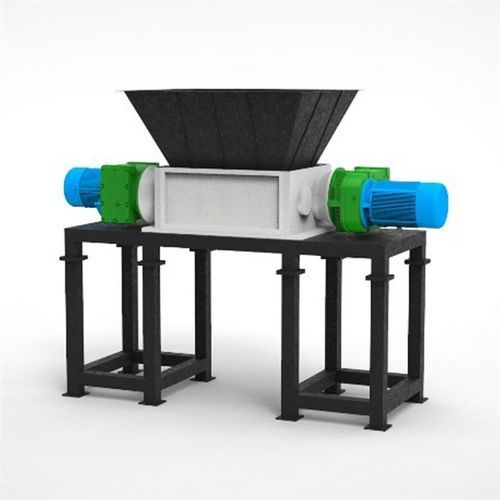

Primary shredder SPT series

metalfor non-ferrous materialsfor aluminum

Product overview
Industrial metal shredders are primary pre-processing machines for reducing the size of metal scrap to facilitate handling, transport and downstream recycling or smelting. These SPT700-series units process ferrous and non‑ferrous scrap including steel, aluminum and copper. Output granulometry is adjustable via blade configuration and rotor size, enabling adaptation to recycling lines, foundries and heavy industrial plants.

Product details
Customer service: 24-hour online support.
Pre-sale: tailor-made technical cooperation and layout design.
Item No: SPT700 (series includes SPT700, SPT800, SPT1000, SPT1200).

Applications

• Steel scrap (sheets, sections, beams)
• Aluminum profiles and cans
• Copper wiring and electric motors
• Metal containers and iron wire

Technical table

• Model SPT700 — Dimension L×W×H: 2940×1816×2270 mm; Cutting chamber: 710×540 mm; Rotor diameter: 280 mm; Blade quantity: 20; Blade thickness: 35 mm; Main motor: 15×15 kW; Weight: 3700 kg
• Model SPT800 — Dimension L×W×H: 3257×1946×2257 mm; Cutting chamber: 810×580 mm; Rotor diameter: 300 mm; Blade quantity: 20; Blade thickness: 40 mm; Main motor: 18.5×18.5 kW; Weight: 4100 kg
• Model SPT1000 — Dimension L×W×H: 3416×1946×2257 mm; Cutting chamber: 1010×680 mm; Rotor diameter: 400 mm; Blade quantity: 25; Blade thickness: 40 mm; Main motor: 30×30 kW; Weight: 4500 kg
• Model SPT1200 — Dimension L×W×H: 3340×1866×2670 mm; Cutting chamber: 1200×780 mm; Rotor diameter: 400 mm; Blade quantity: 30; Blade thickness: 40 mm; Main motor: 30×30 kW; Weight: 6500 kg

Features / Technical specifications

• Item No: SPT700 (models available: SPT700, SPT800, SPT1000, SPT1200)
• Dimensions (L×W×H) by model: SPT700 2940×1816×2270 mm; SPT800 3257×1946×2257 mm; SPT1000 3416×1946×2257 mm; SPT1200 3340×1866×2670 mm
• Cutting chamber (C×D) by model: SPT700 710×540 mm; SPT800 810×580 mm; SPT1000 1010×680 mm; SPT1200 1200×780 mm
• Rotor diameter: 280 / 300 / 400 / 400 mm (by model)
• Blade quantity: 20 / 20 / 25 / 30 (by model)
• Blade thickness: 35 / 40 / 40 / 40 mm
• Main motor power: 15×15 / 18.5×18.5 / 30×30 / 30×30 kW (by model)
• Weight: 3700 / 4100 / 4500 / 6500 kg (by model)
