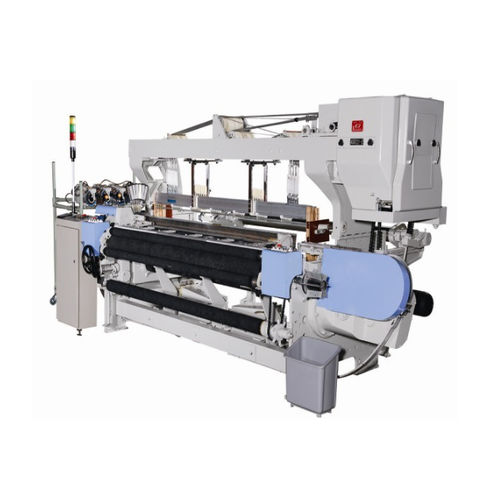

Loom YJ300

YJ300 MIDDLE SPEED RAPIER LOOM Application The rapier loom is used to weave fabric with crude fibers (cotton, wool, hemp, silk), chemical fiber and blending yarn etc. It is suitable for weaving thick fabrics Main datas Model: YJ300 Reed width: 190cm，210cm，230cm，280cm，360cm Max speed: 320RPM(190cm) Color selection: 6 or 8 Yarn range: cotton 7Ne-60Ne, wool 12Nm-100Nm, chemical fiber 100D-650D Diameter of beam: φ800cm，φ680cm，φ600cm Diameter of rolling-up; φ600mm Let off: mechanical, electronic Shedding: mechanical (electronic) dobby, cam, electronic jacquard. Weft stop: piezoelectric ceramic sensor control weft stop Warp stop: 6 rows electric warp stop Color selection: mechanical or electronic Electric system: electronic board Control system: PLC Power: 2.2KW Weight: 2000kg—2500kg Overall size: 4706×1936×2220cm(230/90”) Feature 1. Beating system: adopt separating reed base, bilateral cam type beating instead of four-links beating, high increased the beating power 2. Weft insertion system: adopt space crank connecting driver system, transmission device are installed in the closed box with the oiling device, suspended guiding teeth, left weft insertion, join in center, stable weft insertion,, low warp broken rate 3. Transmission device: designed with the shortest transmission route, mostly decreased the transmission spare parts, and the main parts all adopt box type oiling, make the production and repair more easy. 4. Loom frame: Novel and reasonable design,make the production and installation convenient and reliable
