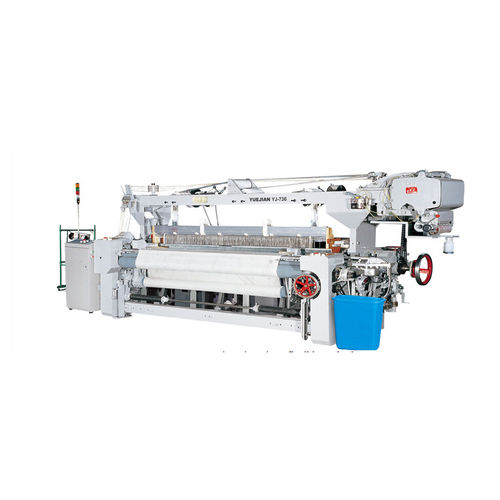

Loom YJ736

Name: - YJ736 Type 200/230/250/280 flexible rapier loom Description: purposes: This machine is suitable for weaving of natural fibers (cotton, wool, hemp), chemical fiber, blended fabric weaving. Features: YJ747 machine is based on the overall strengthening of the steel frame and improved weft insertion and beating, making the YJ736 YJ747 higher and faster than able to weave a thicker fabric. 1, using a short hand four-bar linkage, shorten and strengthen the original beating reed feet, so that the reed beating feet stronger the force generated when a speed faster. 2, with a six-bar linkage weft insertion instead of the original four-bar linkage institutions, ensure that the sword head sufficient time to complete the weft weft insertion, the transfer of stability. main technical parameters: reed width: 200cm (78 ") 230cm (90") 250cm (98 ') 280cm (110 ") speed: 260190 RPM yarn count range: Cotton 6Ne ~ 80Ne, wool wool 10Nm ~ 135Nm, fiber 900D ~ 70D open: on home mechanical (electronic) dobby, spring back to the ensemble, 20 or 24 blade Weft: six-bar linkage of the weft insertion Beating: Four-bar linkage beating short hand-off: take-off friction work, and volume distribution coiling: coiling and take continuous color selection separate volumes: 4 to 6-color warp beam disc diameter : Φ600mm stops: 6 electrical installations filling stop menopause: piezoelectric ceramic control filling stop electrical control: PLC power : 1.8 ~ 2.2kw Weight: 220 ~ 2500KG Dimension: 3700 × 2000 × 1800mm ("200cm/78")
