Type: - YJ757-200/230/250/280/330

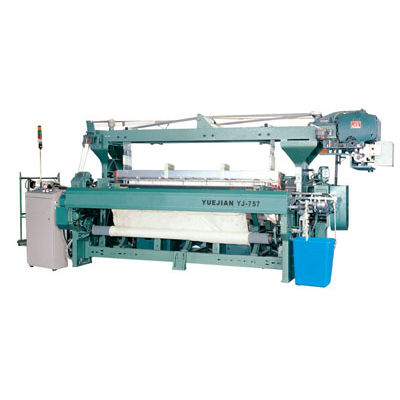

Name: - YJ757 type 200/230/250/280/330 flexible rapier loom
Description:
purposes:
This machine is suitable for weaving of natural fibers (cotton, wool, hemp), chemical fiber, blended fabric weaving. The machine is more suitable for weaving heavy fabric.
Features:
YJ747 machine is based on the overall strengthening of the steel frame and adds an automatic feature to find latitude, making the YJ757 more suitable for weaving heavy fabric.
1, weft automatic find the device to the timely implementation of the weft and the weave mouth fell back, while through the shaft to back-off and Take-up place, reduce the weft close road after the cause of the rare rungs. Can improve the fabric quality.
2, starting with a direct high-speed electromagnetic clutch shaft, it starts quickly.
main technical parameters:
- reed width: 200cm (78 ") 230cm (90") 250cm (98 ') 280cm (110 ")
speed: 240170 RPM
yarn count range: Cotton 6Ne ~ 80Ne, wool wool 10Nm ~ 135Nm, fiber 900D ~ 70D
open: on home mechanical (electronic) dobby, spring back to the ensemble, 20 or 24 blade
Weft: Four-bar linkage combined with small eccentricity movement, the central transition
weft beating: Four-bar linkage
beating off: take-off friction work, adjust the spacing of screw-type take-up and volume
fabric: continuous coiling , separate volume cloth
color selection: 4 to 6-color warp beam disc diameter
: Φ600mm
stops: 6 electrical
filling stop menopause: piezoelectric ceramic control filling stop Selvage: Selvage semi-mechanized operations
