Exploration drilling rig YG150RC

soil investigationgeotechnicaldeep

Overview

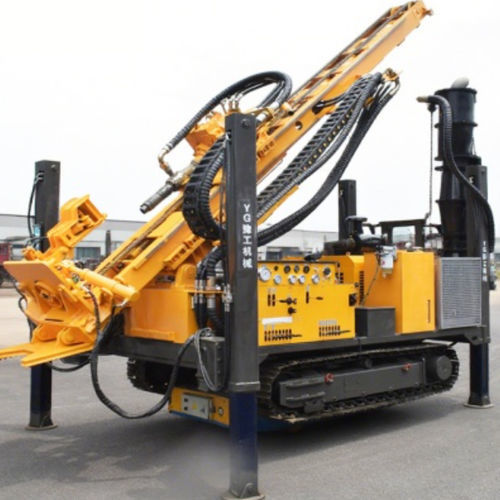

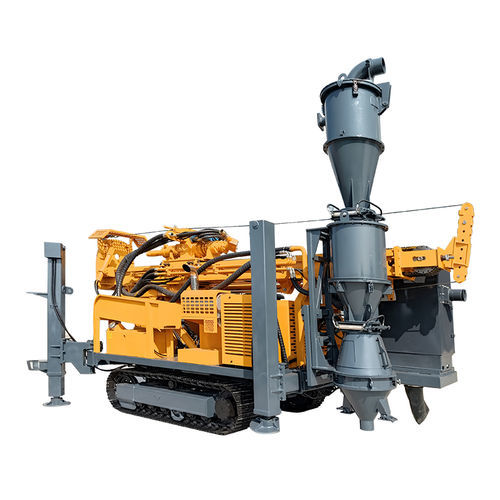

A reverse circulation drilling rig designed for mineral exploration, geotechnical surveys and deep-hole drilling. The YG150RC combines reverse circulation sampling with a crawler-mounted chassis for site mobility and stable operation in varied ground conditions.

Key Uses

• Mineral and ore exploration
• Deep hole drilling (up to nominal 150 m)
• Soil and rock sampling with high sample integrity
• Large-scale construction site investigations (roads, bridges, foundations)
• Groundwater and deep well drilling
• Geotechnical and environmental monitoring

Working principle and core functions
The rig uses reverse circulation (RC) technology: high-pressure air carries cuttings upward through the inner drill pipe, preventing annular contamination and delivering cleaner, less mixed samples. The system supports efficient sample recovery and consistent drilling quality for exploration tasks.

Technical strengths

• High sample purity: Reverse flow reduces contamination from annular cuttings.
• Fast penetration rate: Effective in hard rock and deep layers.
• Simple on-site maintenance: Accessible components for routine service.
• Stable performance: Compatible with standard air compressors and support systems.
• High adaptability: Can integrate with RC drilling rigs and reverse circulation drilling systems for enhanced performance in harsh conditions.

Parameters
Model: YG150RC
Drill rig weight (crawler mounted): 9000 kg
Engine power: 125 kW (Cummins 6BTA5.9-C125)
Dimensions (L×W×H): 6750 × 2200 × 2950 mm
Ambient temperature range: -10～38 °C
Nominal drill depth: 150 m
End-hole diameter: 110–250 mm
Drill angle range: -10–90°

Technical specifications

• Horizontal hole height: 1.85–2.8 m
• Drill head max output torque: 8000 N·m
• Drill head rotation speeds (continuous): 30/60, 54/108 rpm
• Drill head rotation speeds (interval): 62/124, 105/210 rpm (as specified)
• Feeding stroke: 3500 mm
• Thrust force: 45 kN
• Lifting capacity: 65 kN
• Pipe-puller rotation speed: 40 rpm
• Pipe-puller max torque: 30000 N·m
• Hole-through diameter: 370 mm
• Auxiliary winch pull force (first layer): 11 kN
• Winch rope diameter: 14 mm
• Winch rope capacity: 60 m
• Rotary speed (max): 2200 rpm
• Track walk speed: 1.2 km/h
• Unit pressure: <0.05 MPa
• Climb ability: ≥20°
