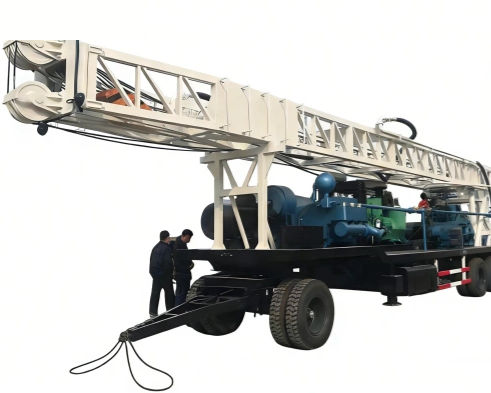

Core drilling drilling rig YG-ZJ series

explorationmultifunctiongeothermal

Overview
YG Machinery supplies a range of oil and geothermal drilling rigs (hydraulic and thermal models) designed for regional adaptability, heavy-duty projects and digital control. Their equipment has been used in 30+ countries and covers oil & gas exploration, geothermal drilling, coal bed methane, production well construction and mineral exploration.

Key features and capabilities

• Regional adaptation for varied ground conditions: clay, sandstone, bedrock, high-temperature environments and remote sites (off-road tire configurations for remote locations).
• Advanced digital control: PLC control and PROFINET networking for digital drilling to reduce operational errors and increase efficiency.
• Model families: YG-BZT series (1000–1500 m) and YG-ZJ series (YG-ZJ30, YG-ZJ40, YG-ZJ50) covering a wide range of depths and configurations.
• Hydraulic and thermal (geothermal) rig variants available; customization possible by project type (oil exploration, geothermal, mining core sampling, production wells, coal bed methane).

Turntable / Winch / Drill tower (specification summary)
Turntable through-hole diameter: 660 mm
Nominal drilling depth examples: 1500 m, 1200 m, 1000 m
Drill pipe models (mm): φ89, φ114, φ127
Turntable speeds (rpm): 145, 84, 52, 37
Turntable torque: 22 kN·m

Main winch: single rope lifting capacity 90 kN; single rope speeds 0.84, 1.90, 3.3 m/s; wire rope: D-6×19 φ28 mm
Auxiliary winch: single rope rated lifting capacity 50 kN; wire rope: D-6×19 φ20 mm

Drill tower: effective height 18.482 m; rated load 60 t
Active drill pipe example: 108×108×12192 mm
Hook load capacity example: 60 t

Dimensions (traction / work status): traction 15282×2790×4420 mm; work 15222×3800×20765 mm
Weight example: 48 t
Traction travel speed limit: 20 KM/h

YG-ZJ series (model comparative summary)

• Models: YG-ZJ30, YG-ZJ40, YG-ZJ50.
• Nominal drilling ranges (by bit diameter): for 114 mm — ZJ30: 1600–3000 m; ZJ40: 2500–4000 m; ZJ50: 3500–5000 m. For 127 mm — ZJ30: 1500–2500 m; ZJ40: 2000–3200 m; ZJ50: 2800–4500 m.
• Maximum hook load (kN): ZJ30 = 1700; ZJ40 = 2250; ZJ50 = 3150.
• Drilling wire rope diameter (mm): 29 / 32 / 35 (ZJ30 / ZJ40 / ZJ50). Winch rated power (kW): 600 / 800 / 1200 (ZJ30 / ZJ40 / ZJ50). Derrick height (m): 41 / 43 / 45 (ZJ30 / ZJ40 / ZJ50).

Application scenarios

• Oil & gas exploration: rigs for oil, natural gas and shale gas exploration wells.
• Geothermal drilling: thermal water well rigs for geothermal projects.
• Coal bed methane drilling.
• Production well construction for oil fields (stable rigs with digital control options).
• Mineral exploration and core sampling for mining projects.

Characteristics / Technical specifications

• Brand: YG Machinery
• Referenced model series: YG-BZT (1000–1500 m), YG-ZJ (YG-ZJ30, YG-ZJ40, YG-ZJ50)
• Control systems: PLC control and PROFINET networking
• Turntable through-hole diameter: 660 mm
• Supported drill pipe diameters: φ89, φ114, φ127
• Turntable speeds: 145, 84, 52, 37 rpm
• Turntable torque: 22 kN·m
• Main winch single rope capacity: 90 kN; auxiliary winch: 50 kN
• Winch single rope speeds: 0.84, 1.90, 3.3 m/s
• Wire rope types and diameters: D-6×19 φ28 mm (main), D-6×19 φ20 mm (auxiliary)
• Drill tower effective height example: 18.482 m; rated load example: 60 t
• Active drill pipe example: 108×108×12192 mm
• Hook load example: 60 t; rig weight example: 48 t; traction speed limit: 20 KM/h
• YG-ZJ series specifics: nominal drilling up to 5000 m, winch power up to 1200 kW, hook load up to 3150 kN (YG-ZJ50)
• Available configurations: off-road tires for remote sites, hydraulic rigs, thermal/geothermal variants, PLC-based digital control and project-specific customization.
