Hydraulic bending machine YG series

servo-electricconcrete reinforcementfor steel bar

Overview

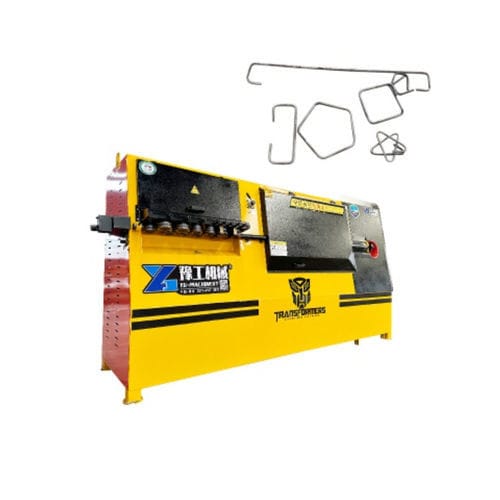

YG Machinery CNC Stirrup Bending Machine is an automated rebar/stirrup processing system that converts coiled rebar into a wide range of stirrup shapes. It combines servo-driven bending, digital straightening, hydraulic cutting and an industrial CNC controller to deliver precise, high-speed production for construction and precast factories.

Core product features and working principle

• Cage-style rotating straightening mechanism with digital metering, hydraulic cutting and a multi-head hydraulic bending assembly driven by a servo control core.
• Precise straightening: adjustable horizontal and vertical straightening wheels plus servo traction wheels ensure high-precision straightening of coiled rebar.
• Efficient bending and cutting: independent servo motor for the bending arm enables rapid rotation and retraction; sliding cutter reduces wear and suits small stirrup production.
• Intelligent control and storage: industrial CNC touch-screen controller stores up to 60 bend angles and multiple templates (square, rectangular, circular, polygonal stirrups).
• Built-in diagnostic functions monitor component wear and assist maintenance planning.

Applications

• High-rise building projects: mass production of standard and custom stirrups for beams and columns.
• Infrastructure works: highways, rail and tunnel projects requiring high bending accuracy for rebar components.
• Precast concrete factories: batch production of rebar cages for precast elements.
• Heavy steel structure workshops: compatible with processes that require precise servo control for section-related tasks.

Key advantages

• Increased throughput: replaces multiple skilled workers; single-operator handling reduces labor needs.
• High precision: servo control yields consistent length and angle accuracy for continuous production.
• Easy maintenance: closed-structure design, gear splash lubrication and diagnostic features simplify upkeep.
• Material versatility: supports cold-rolled and hot-rolled rebar across common construction grades.

Parameters (table)
Model | YG-1 | YG-2 | YG-3 | YG-4
Single wire (mm) | Round steel 4-10 mm; Deformed steel bar 4-8 mm | Round steel 4-12 mm; Deformed steel bar 4-10 mm | Round steel 5-14 mm; Deformed steel bar 5-12 mm | Round steel 4-12 mm; Deformed steel bar 4-10 mm
Double wire (mm) | Round steel 4-6 mm; Deformed steel bar 4-6 mm | Round steel 4-8 mm; Deformed steel bar 4-8 mm | Round steel 5-10 mm; Deformed steel bar 5-10 mm | Round steel 4-8 mm; Deformed steel bar 4-8 mm
Max bending angle | ±180° | ±180° | ±180° | ±180°
Center pin diameter | 16, 18, 20 | 16, 18, 20 | / | 16, 18, 20
Maximum towing speed | 60 m/min | 60 m/min | 110 m/min | 110 m/min
Maximum bending speed | 800°/sec | 800°/sec | 1000°/sec | 800°/sec
Machine size | 2600×800×1700 mm | 3280×1000×1700 mm | 3850×1200×2200 mm | 3660×1110×1700 mm
Device color | Yellow (customized) | Yellow (customized) | Yellow (customized) | Yellow (customized)
Pieces Processed | ≤2 | ≤2 | ≤2 | ≤2
Air circuit system pressure | ≥0.8 MPa | ≥0.8 MPa | / | ≥0.8 MPa
Total Power | 14 kW | 20 kW | 32 kW | 23.5 kW
Working temperature | -5°C ~ 40°C | -5°C ~ 40°C | -5°C ~ 40°C | -5°C ~ 40°C
Length accuracy | ±1 mm | ±1 mm | ±1 mm | ±1 mm
Angle accuracy | ±1° | ±1° | ±1° | ±1°
Average power | 4.5 kW/h | 5 kW/h | 5 kW/h | 5 kW/h
Total weight | 1150 kg | 1350 kg | 2200 kg | 1550 kg

Model | YG-5-14S | YG-5-16S
Single wire (mm) | Round steel 5-14 mm; Deformed steel bar 5-12 mm | Round steel 5-18 mm; Deformed steel bar 5-16 mm
Double wire (mm) | Round steel 5-10 mm; Deformed steel bar 5-10 mm | Round steel 5-14 mm; Deformed steel bar 5-12 mm
Max bending angle | ±180° | ±180°
Maximum towing speed | 110 m/min | 110 m/min
Maximum bending speed | 1000°/sec | 1000°/sec
Machine size | 3850×1200×2200 mm | 4400×1500×2100 mm
Device color | Yellow (customized) | Yellow (customized)
Pieces Processed | ≤2 | ≤2
Air circuit system pressure | ≥0.8 MPa | ≥0.8 MPa
Total Power | 32 kW | 52.5 kW
Working temperature | -5°C ~ 40°C | -5°C ~ 40°C
Length accuracy | ±1 mm | ±1 mm
Angle accuracy | ±1° | ±1°
Average power | 5 kW/h | 12 kW/h
Total weight | 2200 kg | 3000 kg

Features / Technical specifications

• Series name: YG series (models include YG-1, YG-2, YG-3, YG-4, YG-5-14S, YG-5-16S).
• Bending capability (single wire): approximately 4 mm to 18 mm depending on model; refer to model table for deformed bar ranges.
• Double-wire capability: up to 14 mm depending on model.
• Max bending angle: ±180° for listed models.
• Maximum towing speed: up to 110 m/min depending on model.
• Maximum bending speed: up to 1000°/sec (model dependent).
• Length accuracy: ±1 mm; Angle accuracy: ±1°.
• Total power range: 14 kW to 52.5 kW depending on model.
• Operating temperature range: -5°C to 40°C.
• Typical machine weights: 1,150 kg to 3,000 kg depending on model.
