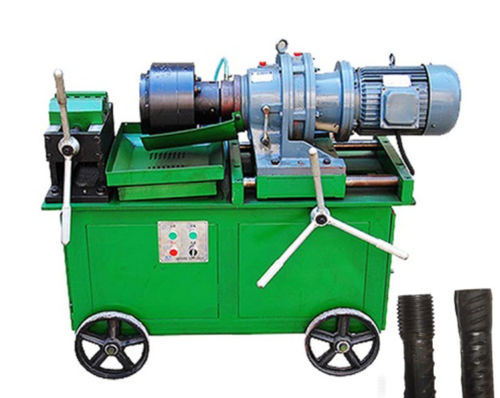

Bar threading machine YG series

Product Overview
A reliable hydraulic thread rolling machine designed for fast, precise rebar threading. The machine forms clean, full-profile threads by cold forming, improving connection strength while reducing processing time. Durable rollers and a stable hydraulic system enable consistent results and long service life.

Key Features

• Hydraulic-driven rolling for stable and consistent thread formation
• High-precision rollers producing full-profile threads
• Cold forming (no cutting) so thread strength exceeds base rebar
• Supports forward and reverse threading
• Operable by one operator with minimal training
• Processes rebar diameters 16–40 mm and performs peeling and threading in one setup
• Improves tensile, fatigue, and corrosion resistance of joints
• Higher processing throughput and lower labor demand compared with manual methods

Technical Table (from product parameters)
Model: YGS-40 / YGT-40 / YGA-40
Processing diameter range: 16-40mm
Thread rolling length: YGS-40: 0-80mm; YGT-40: 0-80mm; YGA-40: 0-100mm
Power voltage: YGS-40: 4kw/380v 50hz; YGT-40: 4kw/380v 50hz; YGA-40: 7.5kw/380v 50hz
Working efficiency: YGS-40: 15s/forming; YGT-40: 8s/forming; YGA-40: One-touch auto forming
Machine weight: YGS-40: 320kg; YGT-40: 350kg; YGA-40: 400kg
Machine size: YGS-40: 115*50*106cm; YGT-40: 110*60*130cm; YGA-40: 126*70*106cm
Type: Standard type / Upgrade type / Full automatic type

Core Technical Advantages

• High-precision, full-profile threads suitable for coupler installation
• Stable hydraulic pressure ensures smooth rolling and uniform results
• Forward and reverse threading options for flexible applications
• No removal of base material preserves rebar strength
• Efficient operation enables high throughput per operator

Where the Machine Is Used

• Residential and commercial building construction
• Bridges, tunnels, and highways
• Precast concrete plants
• Steel structure projects
• Industrial plants and infrastructure

FAQ (selected)

• Q: How long does it take to process one rebar? A: Most joints take about one minute depending on diameter and thread length.
• Q: Can it work with other equipment? A: Yes. It is commonly paired with rebar straightening machines, hydraulic rebar benders, or rebar upsetting machines for integrated processing lines.
• Q: What is the difference between a hydraulic and an automatic model? A: The hydraulic model emphasizes power and stability; the automatic model offers faster feeding and reduced manual handling.
• Q: How to select the right thread rolling machine? A: Confirm rebar type, diameter range, desired thread length, duty cycle, and hydraulic pressure. For large-volume processing choose higher power and durable rollers.
• Q: How to reduce threading errors? A: Errors often originate from worn rollers or incorrect adjustments. Calibrate the peeling blade before rolling and match roller pitch with the coupler; monitor roller wear.

Technical Specifications

• Models available: YGS-40; YGT-40; YGA-40
• Processing diameter range: 16–40 mm
• Thread rolling length: 0–80 mm (YGS-40, YGT-40); 0–100 mm (YGA-40)
• Power: 4 kW / 380 V 50 Hz (YGS-40, YGT-40); 7.5 kW / 380 V 50 Hz (YGA-40)
• Working efficiency: 15 s/forming (YGS-40); 8 s/forming (YGT-40); one-touch auto forming (YGA-40)
• Machine weight: 320 kg (YGS-40); 350 kg (YGT-40); 400 kg (YGA-40)
• Machine size (L*W*H): 115*50*106 cm (YGS-40); 110*60*130 cm (YGT-40); 126*70*106 cm (YGA-40)
• Types: Standard type, Upgrade type, Full automatic type
