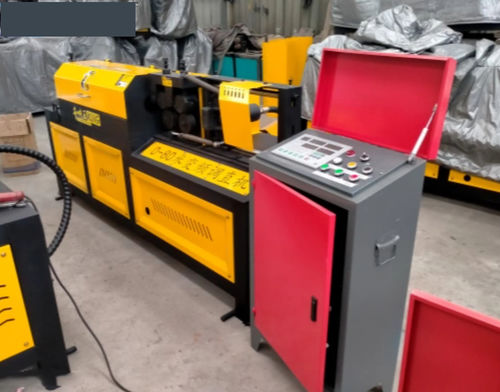

Rebar straightening and cutting machine YGT series

automatic

Product overview
A rebar coil straightening machine designed to convert coiled reinforcing steel into straight bars with automated length cutting and feeding. The system integrates PLC automatic control and a touch-screen interface to program bar length and quantity, enabling continuous processing for construction and distribution applications.

Core features

• PLC automatic control for fully automatic straightening and cutting
• Touch-screen input for length and quantity settings
• Integrated coil feed system for continuous operation
• High-precision straightening with tight tolerance (typ. ±2 mm/m)
• Compatibility with high-tensile steels (e.g., HRB 400, Grade 500/600)
• Energy-efficient traction and modulation motors
• Robust roller and rotary assemblies for consistent results

Performance notes
Typical performance includes straightening tolerance within ±2 mm/m, cutting accuracy around ±0.5–1 cm and wire pulling speeds of approximately 50 m/min (model data). Actual throughput depends on material grade, bar length and operator settings.

Applications

• Precast concrete production: high-volume, precisely cut rebar for prefabricated elements
• Infrastructure projects: tunnel and bridge reinforcement requiring straight, reliable bars
• Rebar distribution centers: conversion of coils into stocked straight bars for resale

Parameters (extract from product table)

• Models: YGT 4-14 and YGT 5-16
• Diameter adjustment range: 4–14 mm (YGT 4-14), 5–16 mm (YGT 5-16)
• Wire pulling speed: 50 m/min
• Traction motor power: 2.2 kW–6 kW
• Modulation motor power: 7.5 kW (YGT 4-14), 15 kW (YGT 5-16)
• Cut off motor power: 5.5 kW
• Cutting error (accuracy): ±0.5–1 cm
• Wire length capability: 800–9000 mm (extendable)
• Straightening degree: ±2 mm/m
• Weight: ~1500 kg
• Size (footprint): 2800×650×1200 mm (YGT 4-14), 3300×650×1300 mm (YGT 5-16)

Why precision and automation matter
Maintaining tight straightening tolerances reduces material waste and ensures structural compliance. PLC automation minimizes manual error and secures consistent quality across batches.

Operational guidance & lifecycle
Roller life is dependent on material and usage; high-quality alloy rollers can process several thousand tons (example range: 5,000–8,000 tons) before replacement. Diameter adjustments are designed to be fast; some systems offer PLC-assisted automatic adjustment.

Additional notes from the page
Consider total cost of ownership when selecting a model: initial price versus energy consumption, spare parts availability and downtime. High-efficiency motors and integrated feed systems can lower operating costs and increase effective throughput.

Technical specifications

• Available models: YGT series (YGT 4-14, YGT 5-16)
• Typical power supply: three-phase industrial power (e.g., 380 V)
