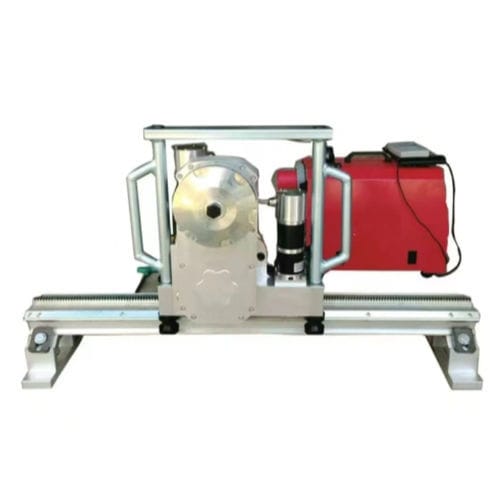

Mounted sawing machine YG 700

circularfor concretefor stone and concrete

Overview
Owning a track-mounted, high-efficiency wall saw is essential for large reinforced-concrete cutting and opening works. This diamond wall saw cuts reinforced concrete up to 730 mm and produces smooth cut faces. The track-mounted system increases precision and reduces manual labor compared with handheld solutions. Typical productivity gains are 5–8× compared with manual methods. Hydraulic and high-frequency electric drive options are available; compact high-frequency units (e.g. 17KW) offer speed and improved portability while delivering required power.

Key features

• Strong Power: 17KW option handles heavy rebar and deep cuts.
• Dual Voltage: Models support switching between 220V and 380V (some versions include an intelligent inverter).
• Lightweight / Portable: Modular track design enables rapid installation by a single operator.
• Remote Control: Wireless remote control (approx. 30 m range) allows safe operation away from dust and falling debris.

Pro Tip
Maintain steady water flow during cutting: water cools the blade and motor while flushing slurry to prevent blade jamming and extend component life.

Technical Parameter of Wall Saw Machine (table)
Hydraulic Oil Pump — Model: YG 600 | YG 700
Max. power: 25KW | 30KW
Motor cooling method: Air cooling | Water cooling
Rated voltage: 380V 50HZ | 380V-420V 50HZ-60HZ
Pressure stages: 3 | 3
Max. operating pressure: 200bar / 20Mpa | 210bar / 21Mpa
Oil flow rate: 30-80 L/min | 40-100 L/min
Dimensions (pump): 600 mm * 650 mm * 1050 mm | 500 mm * 520 mm * 1100 mm
Weight (pump): 220 kg | 140 kg

WallSaw — Saw blade diameter range: 800-1400 mm | 800-1600 mm
Cutting depth: 620 mm | 730 mm
Max. working pressure: 180bar / 18Mpa | 200bar / 20Mpa
Max. oil flow rate: 100 L/min | 100 L/min
Gearing: Gear | Gear
Rotation speed: 450/950/1300 Rpm | 450/850/1200 Rpm
Dimension (saw head): 400 mm * 420 mm * 400 mm | 400 mm * 420 mm * 400 mm
Weight (saw head): 38 kg | 39 kg

Industry Applications

• Infrastructure: Cutting crash barriers or replacing bridge bearings during highway works.
• Underground Work: Creating openings for subway stations or modifying bunker structures.
• Commercial Renovation: Cutting elevator shafts or large facade openings for windows and doors.

Maintenance
After each workday, wash tracks and the saw head with clean water to remove slurry before it hardens. Regularly check gear oil levels and hydraulic/fluid conditions to ensure smooth motor operation under high load.

Specifications

• Manufacturer / Brand: YG Machinery
• Commercial model highlighted on page: YG 700 (cutting depth 730 mm)
• Available models: YG 600, YG 700
• Cutting depth: 620 mm (YG600) / 730 mm (YG700)
• Saw blade diameter range: 800–1400 mm (YG600) / 800–1600 mm (YG700)
• Power (pump): 25 KW (YG600) / 30 KW (YG700)
• Rotation speeds: up to 1300 Rpm (YG600) / up to 1200 Rpm (YG700) — multi-speed gearing
• Max. working pressure: up to 200 bar
• Oil flow rates: pump 30–80 L/min (YG600) / 40–100 L/min (YG700); saw oil flow up to 100 L/min
• Dimensions and weights: pump and saw head dimensions and weights as per technical table above
• Motor cooling: air-cooled or water-cooled options
• Voltage options / inverter: supports 220V and 380V variations (some models with intelligent inverter)
• Remote wireless control range: ~30 m
