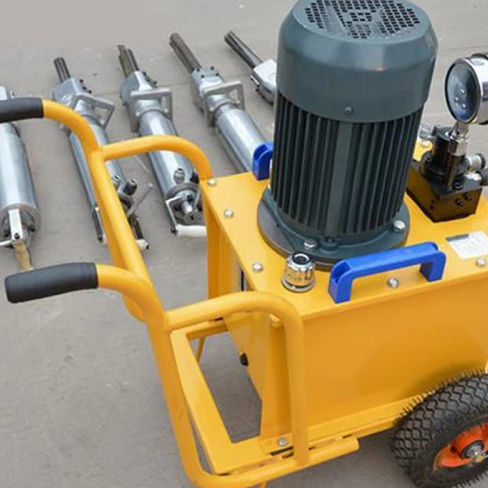

Electric stone splitting machine YG series

Product Overview
Hydraulic rock splitter for controlled non-blasting fragmentation of hard rock and boulders. Supplied in three wedge lengths to adapt to hole depth and target split. Suitable for urban excavation, trenching and secondary breaking in mining where blasting or noise is restricted.

Tip
Choose the diesel-driven pump station for remote sites or locations without reliable electrical supply. Diesel units enable mobile operation and reduce dependency on external power.

The Parameters of the Rock Splitter
Model: YG-250 | YG-350 | YG-450
Wedge Length (mm): 250mm | 350mm | 450mm
Piston Stroke (mm): 90/220mm | 90/220mm | 90/220mm
Drilling Depth (mm): >500mm | >700mm | >900mm
Punching Diameter (mm): 42mm | 46mm | 46mm
Crack Width (mm): 10-20mm | 10-20mm | 10-20mm
Cleavage Time (s): 10-15 s | 10-15 s | 10-15 s
Splitting Force (T): 500 t | 800 t | 800 t
Weight (kg): 240 kg | 250 kg | 260 kg

Why it works

• Massive force: High-pressure hydraulics drive the center wedge outward, producing large tensile forces that split rock from within.
• Simple principle: Rock has low tensile strength; applying a wedge force exploits this to create controlled fractures.
• Complete technical support: Documentation covers correct hole diameter, drilling depth and step-by-step operation to ensure consistent results.

Field Results / Case Study
A contractor working in a residential area in California used a diesel pump station and multiple hydraulic splitter guns to remove large granite boulders where blasting was prohibited. Correct hole preparation and coordinated splitting allowed rapid removal, reduced onsite time and lowered labor and rental costs compared with jackhammers.

Markets & Typical Applications
Non-blasting rock breaking in urban excavation, trench works, landscaping, controlled secondary fragmentation in mining and quarries where noise or blasting restrictions apply.

Specifications

• Models available: YG-250, YG-350, YG-450
• Wedge lengths: 250 mm / 350 mm / 450 mm
• Piston stroke: dual-mode 90 mm / 220 mm
• Drilling depth capability: >500 mm (YG-250), >700 mm (YG-350), >900 mm (YG-450)
• Punching diameter: 42 mm (YG-250), 46 mm (YG-350 & YG-450)
• Crack width produced: 10–20 mm
• Cleavage time: approximately 10–15 seconds
• Splitting force: 500 tonnes (YG-250); 800 tonnes (YG-350 & YG-450)
• Unit weight: 240 kg (YG-250); 250 kg (YG-350); 260 kg (YG-450)
• Typical configuration: hydraulic splitter guns with pump station (diesel pump recommended for remote sites)
• Typical accessories: rock drill for hole preparation; hydraulic hoses and connectors for pump-to-gun connection
