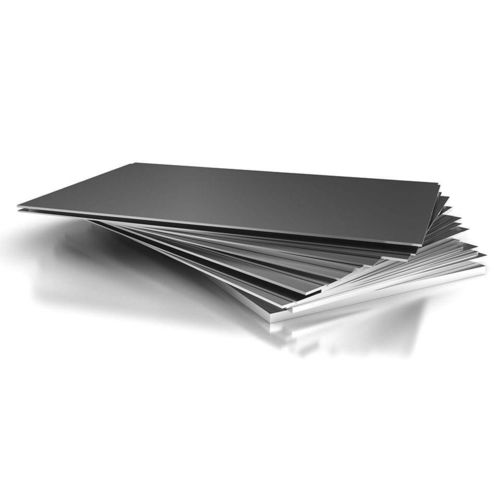

Aluminum plate

Add to favorites

Compare this product

Go to the Zhu Xia Metal Products Co., Ltd. website for more information

Characteristics

Shape

plate

Thickness

Max.: 260 mm
(10.236 in)

6 mm, 102 mm
(0.236 in, 4.016 in)

Min.: 4 mm
(0.157 in)

Width

Max.: 3,800 mm
(149.61 in)

Min.: 1,200 mm
(47.24 in)

Mechanical resistance

Max.: 495,000,000 Pa
(71,793.7 psi)

460,000,000 Pa
(66,717.4 psi)

Min.: 441,000,000 Pa
(63,961.6 psi)

Elasticity

Max.: 340,000,000 Pa
(49,312.8 psi)

320,000,000 Pa
(46,412.1 psi)

Min.: 290,000,000 Pa
(42,060.9 psi)

Description

2024 T351 Aluminum Alloy Plate Alloy: 2024 Temper: T351 Thickness: 4mm-260mm Width: 1200mm-3800mm Surface: Mill finish Product Description 2024 aluminum alloy is a kind of high-strength hard aluminum, which belongs to the Al-Cu-Mg series aluminum alloy. 2024 T351 aluminum plate is mainly used for making various high-load parts and components. 2024 T4 temper represents natural aging treatment after solid-solution melting treatment. 2024 T351 aluminum means cold working to increase the strength after solid solution treatment, and TX51 permanently deformed drawing to remove residual stress and natural aging treatment. SPECIFICATION 2024 T351 Aluminum Plate: Regular thickness range: 6-102mm Regular width range: 1200-3800mm * Remarks: Specific requirement of alloy, temper or specification can be discussed at your request.
