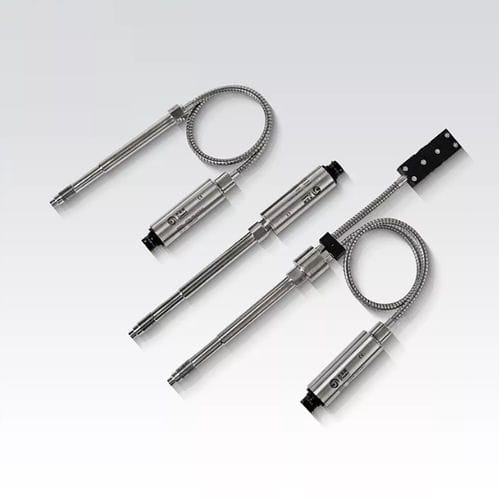

Relative pressure transmitter PTOG series
strain gaugeanalogthreaded

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Technology
strain gauge
Output signal
analog
Mounting
threaded
Other characteristics
temperature-compensated, high-temperature, with amplified output, for melt, for extrusion lines, for HVAC systems, IP65
Process temperature

400 °C (752 °F)

Pressure range

Min.: 0 bar (0 psi)

Max.: 2,000 bar (29,007.55 psi)

700 bar (10,152.64 psi)

Description

Feature: Pressure range:0~35bar or 0~2000bar;  Accuracy level:±1.6%F.S; Standard signal output: 4~20mA with two way replay output Process connection:1/2-20UNF, E-connection:6-pin standard Diaphragm material:15-5PH Protection level:IP65   PTOG Series PTOG series of high-temperature melt pressure sensor and pressure transmitter adopts Wheatstone bridge principle,can output a variety of signals,is simple to install, has good product performance,and is widely used in Chemical fiber industry,rubber industry and plastic extrusion industry. Feature: Pressure Range:0-35bar,0-2000bar Standard signal output:2.5mV/V,3.3mV/V,4-20mA,0-5V,0-10V,0.1-5.1V,0.1-10.1V 4-20mA+Relay Supply:10Vdc;10Vdc(6-16Vdc);12-30Vdc;15-30Vdc Accuracy:0.5%F.S Diaphragm material:15-5PH;17-4PH;Inconel1718 Diaphragm Temp: 400℃ E-connection: 6PIN;8PIN etc Process Connection:1/2-20UNF;M14x1.5;M18x1.5;special design 80% Internal calibration
