Synchronous motor ZAtopDC400 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Voltage
- 400 V
- Configuration
- permanent magnet, compact
- Applications
- traction, for elevators
- Diameter
Max.: 640 mm
(25.2 in)Min.: 120 mm
(4.72 in)
Description
Overview
Properties & special features
Applications and areas of use
Versions of ZAtop (per-model key data)
SM132/A
SM132/B
SM180
SM190
SM200
SM205
SM210
SM250
SM315
Technical data / specifications

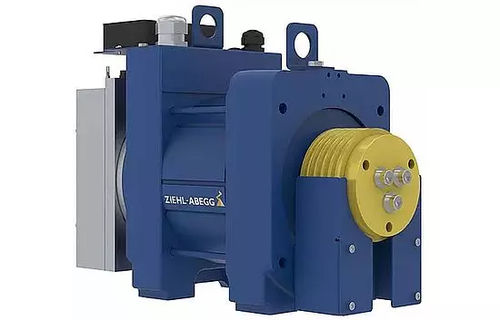

- ZAtop is a permanent-magnet excited, gearless elevator drive designed for traction-sheave cable elevators. It combines compact installation dimensions with efficient motor and control technology to reduce lifecycle energy consumption and installation footprint for elevators with or without a machine room.
Properties & special features
- Permanent-magnet synchronous, gearless traction drive for sheave-type elevators
- Compact construction suitable for installations with or without machine room
- Type-examination tested brake can be integrated into safety devices against overspeed and unintended movement
- High energy efficiency and low running noise
- Available options across versions: mechanical brake airing/release, forced ventilation for extended duty, inductive proximity switch, multiple encoder options (EnDat, SSI, BISS C, SinCos)
Applications and areas of use
- Payloads up to 6,500 kg depending on model
- Operational speeds up to 4.0 m/s depending on model
- Traction sheave diameters from 120 mm to 640 mm
Versions of ZAtop (per-model key data)
SM132/A
- Payload: up to 1,050 kg (2:1)
- Speed: up to 1.6 m/s
- Axle load: up to 1,700 kg
- Installation width: 210 mm
- Traction sheave: 120 mm or 160 mm
- Optional: mechanical brake airing, inductive proximity switch
SM132/B
- Payload: up to 1,050 kg (2:1)
- Speed: up to 2.5 m/s
- Axle load: up to 2,400 kg
- Installation width: 210 mm
- Traction sheave: 120 mm to 200 mm
- Optional: mechanical brake airing, inductive proximity switch
SM180
- Payload: up to 1,275 kg (2:1)
- Speed: up to 1.6 m/s
- Axle load: up to 2,500 kg
- Installation width: 256 mm
- Traction sheave: 160 mm to 240 mm
- Optional: inductive proximity switch, mechanical brake release, forced ventilation for extended on time
SM190
- Payload: up to 1,200 kg (2:1)
- Speed: up to 1.6 m/s
- Axle load: up to 2,400 kg
- Installation width: 320 mm
- Traction sheave: 200 mm or 240 mm
- Optional: forced ventilation for extended on time
SM200
- Payload: up to 2,000 kg (2:1)
- Speed: up to 3.0 m/s
- Axle load: up to 3,600 kg
- Installation width: 320 mm
- Traction sheave: 160 mm to 500 mm
- Optional: mechanical brake airing, forced ventilation for increased on time
SM205
- Payload: up to 1,050 kg (1:1)
- Speed: up to 2.0 m/s
- Axle load: up to 4,800 kg
- Installation width: 345 mm
- Traction sheave: 160 mm or 200 mm
- Optional: mechanical brake airing, forced ventilation, inductive proximity switch
SM210
- Payload: up to 2,500 kg (2:1)
- Speed: up to 3.0 m/s
- Axle load: up to 4,500 kg
- Installation width: 340 mm
- Traction sheave: 240 mm to 520 mm
- Optional: mechanical brake airing, forced ventilation, inductive proximity switch
SM250
- Payload variants: 1,800 kg (1:1) / 3,500 kg (2:1) / 6,500 kg (4:1)
- Speed: up to 4.0 m/s
- Axle load: up to 13,000 kg
- Installation width: max. 794 mm (SM250.100C)
- Traction sheave: 320 mm to 640 mm
- Optional: mechanical brake airing, forced ventilation, inductive proximity switch
SM315
- Payload: 5,000 kg (2:1)
- Speed: up to 2.5 m/s
- Axle load: up to 13,000 kg
- Installation width: max. 1,108 mm (SM315.100A)
- Traction sheave: 520 mm or 640 mm
- Optional: mechanical brake airing, forced ventilation, inductive proximity switch
Technical data / specifications
- Type: permanent-magnet excited gearless synchronous motor for traction-sheave cable elevators
- Design: compact, suitable for installations with or without machine room
- Brake: type-examination tested; usable as part of overspeed/unintended-movement protective devices
- Encoders supported: EnDat, SSI, BISS C, SinCos (absolute encoder options)
- Common options: mechanical brake airing/release, forced ventilation, inductive proximity switch, multiple encoder and brake activation variants
- Performance envelope across series: payloads from ~1,050 kg up to 6,500 kg, speeds up to 4.0 m/s, traction sheave diameters 120 mm–640 mm
