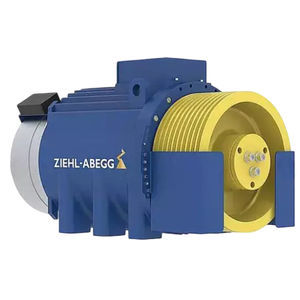

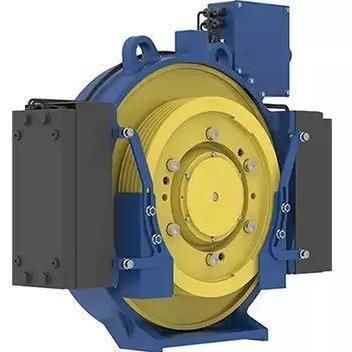

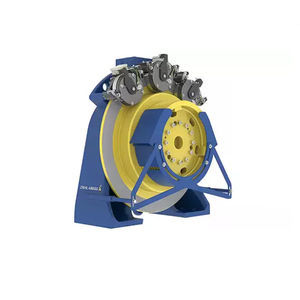

Synchronous motor ZAdisc

400 Vwith braketraction

Overview
The ZAdisc elevator machine replaces the original drive on a 1:1 basis. The traction sheave is prepared for the existing rope. By using the existing fixing element and clamp, significant modification of the guide rails is not required. The very flat design of the ZAdisc optimizes shaft dimensions. The two-step RETROFITBLUE modernization concept enables a transition from original spare parts to ZIEHL-ABEGG components available on the open market. Installing the ZAdyn4CS inverter (step 1) and replacing the old elevator machine with a ZAdisc (step 2) creates a modern elevator system with clearly improved performance and ride comfort.

Features & highlights
Gearless synchronous drive with permanent excitation for traction-rope elevators with a traction sheave and no machine room. Compact design and mounting of the drive on the guide rails allow optimal shaft dimensions. The approved brake can serve as a protective equipment element to prevent excessive speed during ascent and to avoid unintended car movement.

Applications and fields

• Payloads up to 1,125 kg
• Speeds up to 2.5 m/s
• Traction sheave diameters: 400 mm and 480 mm
• Modernization and new installation of systems with disc-rotor motors

ZAdisc versions
SL506

• Payload: up to 675 kg (2:1)
• Speed: up to 1.6 m/s
• Axle load: up to 1,800 kg
• Traction sheave: 400 mm
• Installation depth < 200 mm
• Inductive proximity sensors (optional)
• Mounting bracket

SL510

• Payload: up to 1,125 kg (2:1)
• Speed: up to 2.5 m/s
• Axle load: up to 2,400 kg
• Traction sheave: 480 mm
• Installation depth < 200 mm
• Inductive proximity sensors (optional)
• Mounting bracket

Technical characteristics / specifications

• Drive type: gearless permanent-excitation synchronous motor
• 1:1 replacement of original machines; traction sheave prepared for existing rope
• Compact installation depth: < 200 mm
• Available traction sheaves: 400 mm (SL506) and 480 mm (SL510)
• Payloads: SL506 up to 675 kg (2:1), SL510 up to 1,125 kg (2:1)
• Rated speeds: SL506 up to 1.6 m/s, SL510 up to 2.5 m/s
• Axle loads: SL506 up to 1,800 kg, SL510 up to 2,400 kg
• Options: inductive proximity sensors, mounting brackets
• Modernization compatibility: RETROFITBLUE concept and integration of ZAdyn4C / ZAdyn4CS inverter
• Approved brake usable as protective equipment element
