Synchronous motor SM860
DC400 Vpermanent magnet

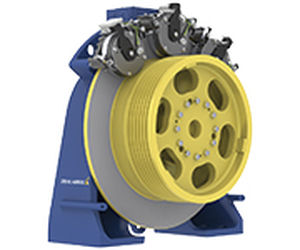

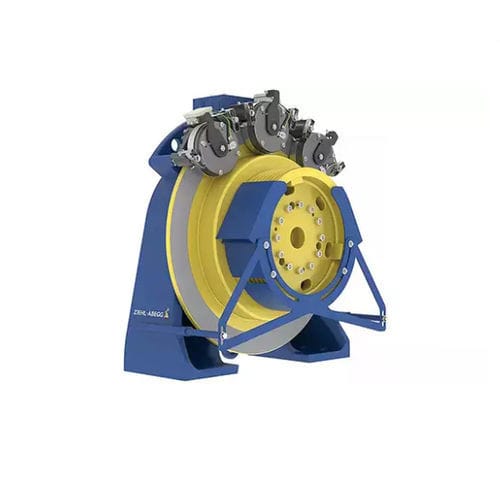

Synchronous motor - SM860 - ZIEHL-ABEGG - DC / 400 V / permanent magnet
Synchronous motor - SM860 - ZIEHL-ABEGG - DC / 400 V / permanent magnet
Add to favorites
Compare this product

Characteristics

Type
synchronous, DC
Voltage
400 V
Configuration
permanent magnet
Applications
for elevators, traction
Power

Max.: 39,000 W
(53.03 hp)

Min.: 9,200 W
(12.51 hp)

Torque

2,200 Nm
(1,622.636728 ft.lb)

Diameter

480 mm, 520 mm, 600 mm, 680 mm
(18.9 in, 20.47 in, 23.62 in, 26.77 in)

Description

ZAsyn Properties & special features: Permanent magnet excited gearless drive for traction sheave cable elevators with and without a machine room. The slimline design and wall mounting in the elevator shaft allow for optimum shaft dimensions. The type-tested brake can be used as a safety device to prevent uncontrolled upwards cabin movement and unintended cabin movement from the landing. Drives in the ZAsyn series provide for high energy efficiency and low noise levels when running. Applications and uses Payload up to 2500 kg Speed up to 3.0 m/s Traction sheave diameter of 400 mm SM860 Payload: up to 2500 kg (2:1) Speed: up to 3.0 m/s Axle load: up to 8000 kg Installation depth: < 585 mm Traction sheave: 480 mm and 600 mm Optional: Mechanical brake airing via Bowden cable
