Axial fan FFowlet

ACEC motorindustrial

Overview

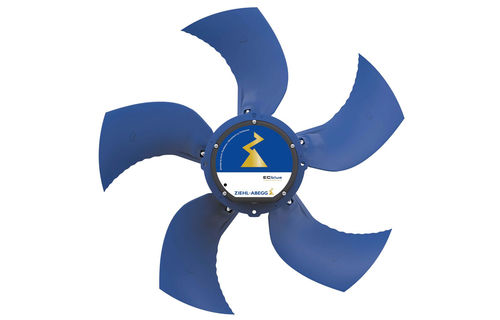

The challenge was to develop a new axial fan with optimum efficiency and minimum noise emission. The FFowlet features a profiled, sickle-shaped blade inspired by the silently beating wing of the owl, delivering efficient air movement with reduced noise. Its compact dimensions suit a variety of installation environments. Available in diameters 500–910 mm, FFowlet achieves volume flows up to 24,500 m³/h and static pressure rises up to 150 Pa.

Product specification
The FFowlet axial fan with ultra-low-noise biomimetic blades is designed for applications with low pressure loss such as agriculture, refrigeration, air conditioning and ventilation. With protection class IP55 and coated blades it is suitable for use in extreme conditions. Available with proven AC technology and ECblue external-rotor technology with integrated controller matched to the fan. The unit provides fully speed-controlled volume flow for high operational flexibility.

Properties & special features

• Designed for applications with low pressure loss
• Optimised for agricultural applications
• Protection class IP55 and coated blades for extreme environments
• Low operating costs through efficient biomimetic blade design and reduced noise emissions
• High flexibility via 100% speed-controllable volume flow
• Smooth operation and long durability thanks to dynamic balancing on two levels
• Compact dimensions for diverse installation situations
• Multiple certifications: UL, CCC, GOST, CE
• Itemised cables for fast commissioning

Motor concepts

• External rotor motors: ECblue technology with integrated controller matched to the fan
• AC technology

Technical specifications

• Designation: FFowlet
• Impeller diameters: 500, 560, 630, 710, 800, 910 mm
• Maximum volume flow: up to 24,500 m³/h
• Maximum static pressure rise: up to 150 Pa
• Protection class: IP55
• Blade: coated, biomimetic sickle-shaped profile (owl-inspired) for ultra-low-noise operation
• Motor options: AC or ECblue (external rotor) with integrated controller
• Speed control: fully speed-controlled volume flow
• Balancing: dynamic balancing on two levels for smooth operation and durability
• Environmental suitability: coated blades and IP55 for extreme conditions
• Certifications: UL, CCC, GOST, CE
• Accessories: itemised cables for fast commissioning
