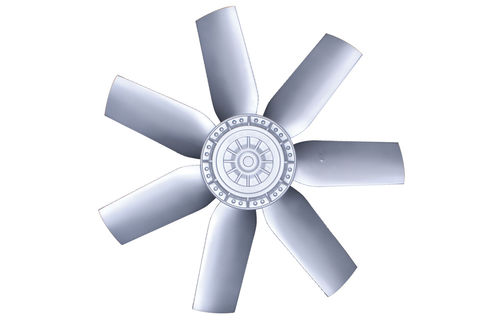

Axial fan FC series

ductfor air circulationventilation

Overview
Axial fans in the FC series deliver high efficiency through profiled aluminium die-cast blades. Designed for industrial air-movement tasks such as full nozzles in HVAC and refrigeration, agriculture, transformer cooling, timber drying, industrial processes and mechanical engineering. Robust construction ensures smooth operation and long service life while balancing energy efficiency and investment costs.

Product specification:
Axial fans from the FC series feature proven profiled aluminium die-cast blades and offer high flexibility via fully speed-controlled volume flow. Recommended for use in aerodynamically designed air-duct systems including full nozzles and pipe installations. Available in sizes from 315 mm to 1,250 mm. Suitable for flow rates up to 62,000 m³/h and static pressure increases up to 300 Pa. Driven by AC external-rotor motors, the design represents an economical compromise between energy efficiency and initial investment, suitable for mechanical engineering, plant systems and automotive applications.

Properties & special features:

• High flexibility thanks to fully speed-controlled air flow
• Balanced compromise between energy efficiency and investment costs
• Smooth operation and long durability due to dynamic balancing on 2 levels
• Multiple certifications (VDE, UL, CCC, EAC, CE, among others)

Motor concepts:

• External-rotor motors
• AC technology

Applications:

• Full nozzles in air-conditioning and refrigeration systems
• Agriculture
• Transformer cooling
• Timber drying
• Industrial applications
• Mechanical engineering

Technical specifications:

• Series: FC series
• Fan type: Axial fan with profiled aluminium die-cast blades
• Size range: 315 mm to 1,250 mm
• Maximum volumetric flow: up to 62,000 m³/h
• Maximum static pressure increase: up to 300 Pa
• Motor technology: AC external-rotor motors
• Speed control: Fully speed-controlled for flexible volume flow rates
• Typical application environments: HVAC (full nozzles), duct and pipe installations, transformers, drying, industrial and mechanical engineering
• Balancing: Dynamic balancing on 2 levels for smooth operation and durability
• Certifications: VDE, UL, CCC, EAC, CE (among others)
