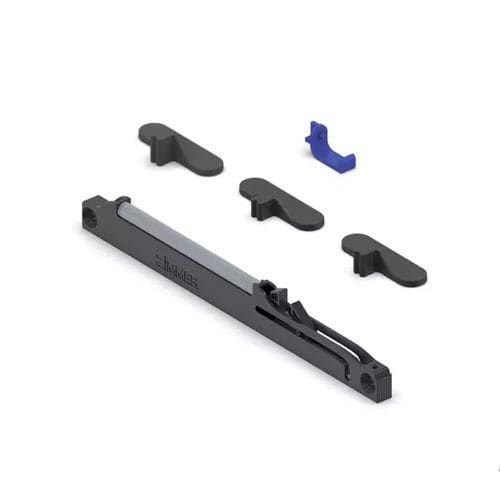

PA6 plastic door damper eaZI®connect STRETTO

fluidcompactoil

Overview
The eaZI®connect STRETTO soft-close unit provides controlled damping for sliding doors and drawers where installation space is limited. Its slim, one-piece housing integrates an oil damper to decelerate closing movements while maintaining compact dimensions.

Key features

• Compact, slim design for tight installations
• Built-in oil damper for controlled, quiet closing
• Suitable for sliding doors and drawers (inside closing)
• Designed for long service life: 50,000 cycles
• Delivered as a set including matching activators

Set contents / Bill of materials

• eaZI®silent STRETTO — Part number: E030-06-002 — Quantity: 1
• eaZI®part ABSTANDHALTER — Part number: D000-00-046 — Quantity: 1

Technical specifications

• Medium: Fluid
• Technology: Defined Comfort
• Lifetime: 50,000 cycles
• Operating temperature: 10 - 40 °C
• Stroke: 30 mm
• Weight class: 20 kg
• Direction of action: inside closing
• Freerun: yes
• Hook type: Type S
• Hook color: black RAL9005
• Hook material: Polyketones
• Spring force F1: 4.9 N
• Spring force F2: 9.2 N
• Length (overall): 170 mm
• Width: 7 mm
• Height: 18.7 mm
• Drilling spacing: 160 mm
• Drilling version 1: with reduction
• Fixing screw Ø: 4 mm
• Housing construction: One-piece
• Housing color: black RAL9005
• Housing material: PA6GF30
• Enclosure: without
• Assembly: Screw-on
• Packaging unit: 1 piece
