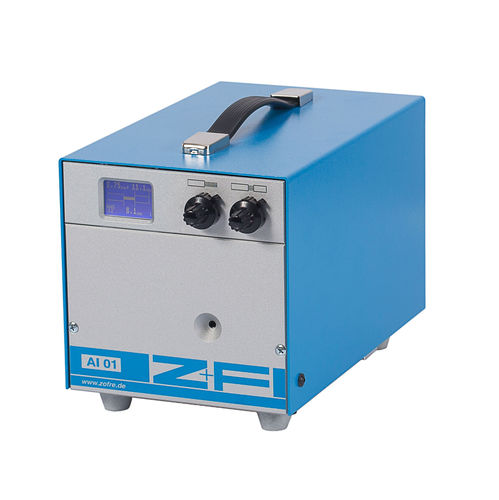

Cable stripping machine Z+F AI 01

electric

Stripping machine AI 01 Technical information The basic model AI 01 is a stripping machine driven by an electric motor. Exact stripping of different insulated wires up to an outer diameter of 5 mm is possible. Adjustments are very easy to handle. In addition a special funnel to infeed a thin wire is also delivered. Stripping range: 0,05 – 6 mm² (AWG 30 – 10) Stripping length L: 3 – 20 mm (0.12 – 0.79 in.) Pull-off length: 3 – 20 mm (0.12 – 0.79 in.) Infeed length: 22 mm (0.87 in.) Cycle time: ca.0,5 s Power supply: 100 – 240/50 – 60/70 V/Hz/VA Dimensions (w x d x h): 190 x 295 x 190 mm (7.5 x 11.6 x 7.5 in.) Weight: 7,5 kg (16.53 lbs) Order specifications: V10AI000800
