Wire stripping machine Z+F AI 04electric
Add to favorites
Compare this product
Characteristics
- Product to be stripped
- wire
- Other characteristics
- electric
- Diameter
8 mm
(0.31 in)
Description

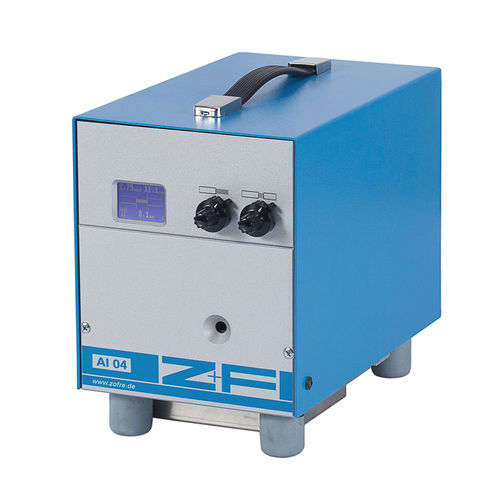

Stripping machine AI 04
Technical information
The AI 04 is a stripping machine driven by an electric motor. Exact stripping of different insulated wires up to an outer diameter of 8 mm is possible. Adjustments are very easy to handle with an adjustment knob.
Stripping range:
2,5 – 16 mm²
(AWG 14 – 6)
Stripping length L:
3 – 20 mm
(0.12 - 0.79 in.)
Pull-off length:
3 – 20 mm
(0.12 - 0.79 in.)
Infeed length:
22 mm (0.87 in.)
Cycle time:
ca. 1 s
Power supply:
100 – 240/50 – 60/100
V/Hz/VA
Dimensions (w x d x h):
190 x 295 x 230 mm
(7.5 x 11.6 x 9.06 in.)
Weight:
10 kg
(22.04 lbs)
Order specifications: V10AI
