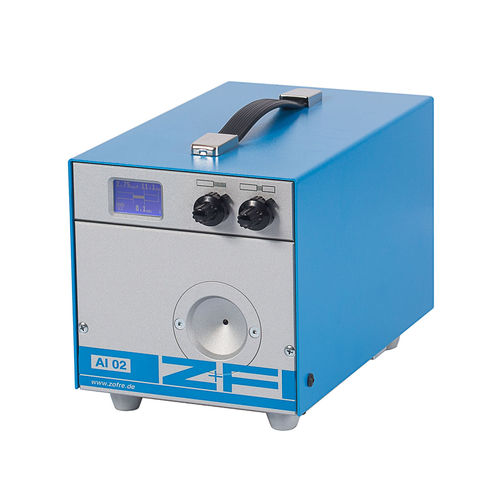

Cable stripping machine Z+F AI 02

electric

Stripping machine AI 02 Technical information The cross-section range is reduced from 0.05 up to 2.5 mm² (AWG 30 – 14) and a special front plate is added. This machine can be used for shorter infeed lenght of 15 mm + stripping length. Stripping range: 0,05 – 2,5 mm² (AWG 30 – 14) Stripping length L: 3 – 20 mm (0.12 - 0.79 in.) Pull-off length: 3 – 20 mm (0.12 - 0.79 in.) Infeed length: 15 mm (0.59 in.) Cycle time: ca. 0,5 s Power supply: 100 – 240/50 – 60/70 V/Hz/VA Dimensions (w x d x h): 190 x 295 x 190 mm (7.5 x 11.6 x 7.5 in.) Weight: 7,5 kg (16.53 lbs) Order specifications: V10AI000802
