Hall effect current sensor ZED24

DIN railprecisionanalog

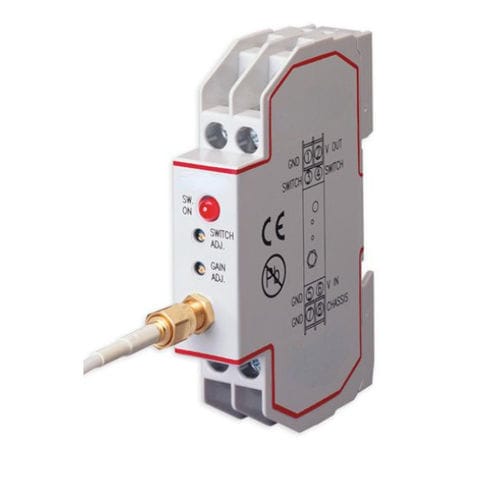

Displacement Measuring System Model ZED24 is a non-contact, analog proximity measuring system. The system operates on a traditional Colpitts oscillator circuit. This low-cost, easy-to-use system can be utilized for precision static and dynamic measurements of conductive targets.The ZED24 system consists of two subassemblies: sensor with integrated cable, and signal conditioning electronics module. Two standard sensor configurations are available, the 24C and the 24CM. The ZED24 electronics is housed in a DIN rail mount enclousre with terminal connections for +12 Vdc to +24 Vdc input power and the variable voltage and switched ouptuts. offers either the P-3410 or P-3450 power supplies. The system comes standard with one of two production sensor configurations — the 24C or the 24CM. Both of these sensors are rated for continuous operation up to 400°F (205°C). Selected performance data and dimensions for these two sensors are shown in the data sheet. Additional sensor configurations are available upon request. MAIN FEATURES Outstanding precision: static resolution to 12 microinches Excellent performance with ferrous targets Variable voltage input from 12 to 24 volts DC Compact rugged electronics and sensors Adjustable gain for up to 22 volts output (with 24 Vdc input) High speed (10 KHz) level adjustable switched output for process control Very low switching hysteresis, < 1% on ferrous targets RoHS compliant DIN rail configuration CE Compliant options Many options are available to customize a standard system to meet the exact needs of the application. The most popular are:Sensor Cables and Special Calibrations.
