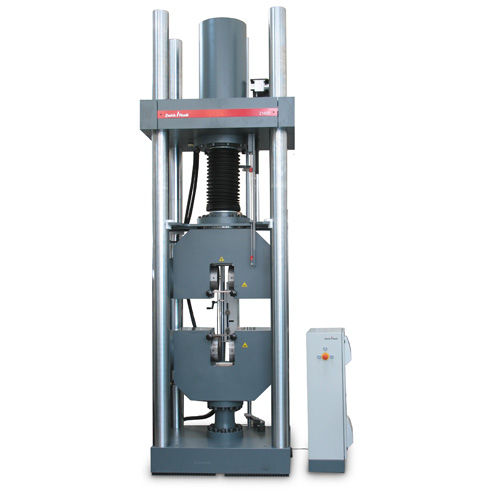

Compression testing machine H series

tensionfor materialshydraulic

Materials Testing Machine with Hydraulic Drive Industries • - Metals Test load • - 600 - 5,000 kN Type of test • - Tensile • - Compression • - Flexure Applications • - ISO 6892 • - ISO 15630 • - ISO 898 The perfect system for high test loads The H-series hydraulic materials testing machines have a single central hydraulic drive and are available in 600, 1,200, 1,600, 2,000, 2,500, 3,000 and 5,000 kN versions (60 - 500 tons). Advantages & features • - Hydraulic materials testing machines have a single central hydraulic drive (differential actuator). • - The materials testing machines are optionally equipped with an adjustable top crosshead to be able to adapt the test area to customer-specific requirements. • - The ergonomic operating height facilitates easy feeding of specimens. • - With the high resolution and channel-synchronized measurement technology, material characteristics are determined with extreme accuracy. Range-switching is not necessary as load signal resolution is available over the full range. • - Force measurement takes place via a DMS load cell and is calibrated in accordance with ISO 7500-1 in Class 0.5 and Class 1. • - The wide measurement range also allows low test loads to be determined precisely, with no need to re-equip the testing machine. • - The testing machine is set on vibration damping rubber mats. A special foundation is not necessary.
