Compression testing machine AllroundLine

tensilelife cycleflexure

Overview

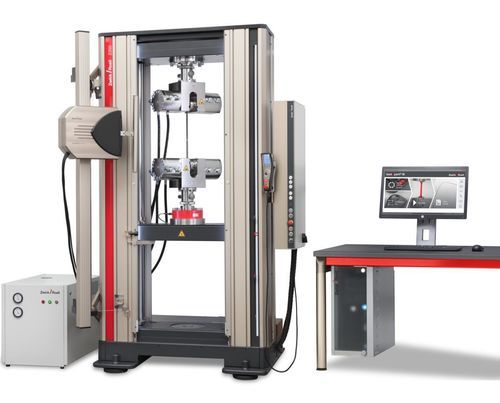

The AllroundLine is a customizable, highly versatile universal testing machine suitable for applications in all industries. It is available as a floor-standing testing machine (models Z100, Z150, Z250) and as a table-top testing machine (models Z005, Z010, Z020, Z030, Z050, Z100, Z150). A proven operating concept combined with a flexible, modular load-frame design makes the AllroundLine an optimal solution for demanding testing applications, whether for quality control or for research projects.

Highlights

• Selection of 39 different standard machine types for optimal processing of test tasks
• Available as floor-standing and table-top testing machines
• Modular design for maximum flexibility and expansion options
• Wide selection of coordinated accessories
• Multi-area concept reduces operating and acquisition costs when many different tests must be performed

Product properties

• Industries: Universal
• Test load: 5 kN - 250 kN
• Type of test:
  • Tensile test
  • Compression test
  • Flexure test
  • Cyclic tests
• Applications: Universal testing applications in a medium force range

Floor-standing testing machine vs. table-top testing machine

• Table-top testing machines: Used for almost all tests where low to medium specimen elongation occurs. One or optionally two test areas are available. Can be equipped for applications beyond ambient temperature with temperature chambers.
• Floor-standing testing machines: Primarily used for tests with higher forces, for materials with large strains (e.g. rubber), for integration of larger temperature or environmental chambers, or for testing very large components. One or optionally two test areas are available.

Advantages and features

• Optimum operating convenience: ergonomics, adjustable configuration, adjustable crossheads, leveling damping units, wheelchair-friendly options on table-top machines
• High stiffness and precise crosshead guidance: flexurally stiff hollow profile with guide-cylinder, long guides, reduced crosshead inclination under load
• Mechanical modularity: extendable with wide range of test fixtures and specimen grips; play-free plug and T-slot system; variety of crosshead mount options
• Integrated safety in accordance with the EC Machinery Directive; CE-compliant safety device developed according to EN14119 and EN14120; compliance documented with EC Declaration of Conformity
• Ready for changes in future technology: modular design, upgradeable electronics (testControl II) and compatibility with future ZwickRoell software; spare parts available for minimum 10 years
• Two test areas option: perform different tests without changing tools; reproducible results; both test environments can be operated with one load cell
• Side test area: up to three areas in one testing machine; ergonomically adjustable operating height; space-saving and suitable for high specimen throughput with system configuration builder
• Modern load-frame design: patented flexurally stiff hollow profile with guide-cylinder and T-slots for flexible mounting
• Highly accurate tests at temperature: integration with temperature chambers and coordinated in-house components (extensometer, testing software)

Technical overview

• Crosshead/test speeds depending on type: from 0.00005 mm/min up to 3000 mm/min (model-dependent). Testing machine speed independent of test load.
• High test-speed range usable without restriction. Test loads up to 110% of machine nominal load permissible to compensate for heavy combinations of fixtures and accessories.
• Available for test loads up to 250 kN and with test-area heights from 1030 mm to 2560 mm.
• Can be operated with standard commercial PCs or laptops; no special expansion cards required.
• CE-compliant safety device available; safety technology and industrial components comply with IEC 60947 and EC Machinery Directive.

Properties according to force range (tables)
Floor-standing testing machine (selection)
Type | Test load Fmax [kN] | Crosshead speed vmin ... vmax [mm/min] | Crosshead return speed, max. [mm/min] | Driving power | Power consumption (full load) approx. [kVA] | Item No.
Z100 SN | 100 | 0.00005 ... 1000 | 1500 | (driving power not listed) | 6 kVA | 1035012
Z100 SW | 100 | 0.00005 ... 1000 | 1500 | | 6 kVA | 1035013
Z100 SH | 100 | 0.00005 ... 1000 | 1500 | | 6 kVA | 1035014
Z150 SN | 150 | 0.00005 ... 900 | 1500 | 4000 W (driving power) | 6 kVA | 1035017
Z150 SW | 150 | 0.00005 ... 900 | 1500 | 4000 W | 6 kVA | 1035020
Z250 SN | 250 | 0.00005 ... 600 | 1000 | | 6 kVA | 1031325
Z250 SW | 250 | 0.00005 ... 600 | 1000 | | 6 kVA | 1035023
Z250 SR | 250 | 0.00005 ... 600 | 1000 | | 6 kVA | 1035022
Z250 SH | 250 | 0.00005 ... 600 | 1000 | | 6 kVA | 1035024
Z250 SE | 250 | 0.00005 ... 600 | 1000 | | 6 kVA | 1032996
Z250 SNS | 250 | 0.00005 ... 600 | 1000 | | 6 kVA | 1035025

Table-top testing machine (selection)
Type | Test load Fmax [kN] | Crosshead speed vmin ... vmax [mm/min] | Crosshead return speed, max. [mm/min] | Driving power [W] | Power consumption (full load), approx. [kVA] | Item No.
Z005 TN | 5 | 0.0005 ... 3000 | 3000 | 500 W | 2 kVA | 1004473
Z005 TNW | 5 | 0.0005 ... 3000 | 3000 | 500 W | 2 kVA | 1004475
Z005 TH | 5 | 0.0005 ... 3000 | 3000 | 500 W | 2 kVA | 1004476
Z005 THW | 5 | 0.0005 ... 3000 | 3000 | 500 W | 2 kVA | 1004477
Z005 TE | 5 | 0.0005 ... 3000 | 3000 | 500 W | 2 kVA | 1004478
Z010 TN | 10 | 0.0005 ... 2000 | 3000 | 500 W | 2 kVA | 1004479
Z010 TNW | 10 | 0.0005 ... 2000 | 3000 | 500 W | 2 kVA | 1004480
Z010 TH | 10 | 0.0005 ... 2000 | 3000 | 500 W | 2 kVA | 1004481
Z010 THW | 10 | 0.0005 ... 2000 | 3000 | 500 W | 2 kVA | 1004482
Z010 TE | 10 | 0.0005 ... 2000 | 3000 | 500 W | 2 kVA | 1004483
Z010 TEW | 10 | 0.0005 ... 2000 | 3000 | 500 W | 2 kVA | 1004484
Z020 TN | 20 | 0.0005 ... 1000 | 1500 | 500 W | 2.3 kVA | 1004485
Z020 TNW | 20 | 0.0005 ... 1000 | 1500 | 500 W | 2.3 kVA | 1004486
Z020 TH | 20 | 0.0005 ... 1000 | 1500 | 500 W | 2.3 kVA | 1004487
Z020 THW | 20 | 0.0005 ... 1000 | 1500 | 500 W | 2.3 kVA | 1004488
Z020 TE | 20 | 0.0005 ... 1000 | 1500 | 500 W | 2.3 kVA | 1004489
Z020 TEW | 20 | 0.0005 ... 1000 | 1500 | 500 W | 2.3 kVA | 1004490
Z030 TH | 30 | 0.0005 ... 1000 | 1500 | 1000 W | 2.3 kVA | 1004491
Z030 THW | 30 | 0.0005 ... 1000 | 1500 | 1000 W | 2.3 kVA | 1004492
Z030 TE | 30 | 0.0005 ... 1000 | 1500 | 1000 W | 2.3 kVA | 1004493
Z030 TEW | 30 | 0.0005 ... 1000 | 1500 | 1000 W | 2.3 kVA | 1004494
Z050 TH | 50 | 0.0005 ... 600 | 1000 | 1000 W | 2.3 kVA | 1004495
Z050 THW | 50 | 0.0005 ... 600 | 1000 | 1000 W | 2.3 kVA | 1004496
Z050 TE | 50 | 0.0005 ... 600 | 1000 | 1000 W | 2.3 kVA | 1004498
Z050 TEW | 50 | 0.0005 ... 600 | 1000 | 1000 W | 2.3 kVA | 1004499
Z100 THW | 100 | 0.0001 ... 1500 | 2500 | 4000 W | 6 kVA | 1004500
Z100 TEW | 100 | 0.0001 ... 1500 | 2500 | 4000 W | 6 kVA | 1004501
Z150 TL | 150 | 0.0001 ... 900 | 1500 | 4000 W | 5.5 kVA | 1004503

Notes: Values apply to machines with safety doors closed in automatic mode and to machines without safety devices. For machines with safety door open, speed is reduced to 600 mm/min. Some machines must be bolted to the floor; support legs included for certain types.

Downloads (available product information / brochures)
Product information brochures are available for different Fmax ranges (5-100 kN, 100-150 kN, 150 kN, 250 kN) and for the floor-standing AllroundLine with side test area. (Documents are listed in the product Downloads section.)

Safety & compliance
CE-compliant safety device available, developed in accordance with EN14119 and EN14120; integrated safety in accordance with the EC Machinery Directive; IEC 60947 compliant components.

Caractéristiques / spécifications techniques

• Model / denomination: AllroundLine (floor-standing and table-top variants)
• Force / test load range: 5 kN to 250 kN (model-dependent)
• Crosshead / test speed range (model-dependent): from 0.00005 mm/min up to 3000 mm/min
• Crosshead return speed (max): up to 3000 mm/min (model-dependent)
• Driving power: various (500 W up to 4000 W depending on model)
• Power consumption (full load): approx. 2 kVA up to 6 kVA depending on model
• Test-area heights: from approx. 1030 mm to 2560 mm (depending on model)
• Machine types / examples: Z005, Z010, Z020, Z030, Z050, Z100, Z150, Z250 and variants (SN, SW, SH, TH, THW, TE, TEW, TL, SR, SE, SNS, etc.)
• Test types supported: tensile, compression, flexure, cyclic tests
• Optional: two test areas, side test area, temperature/environmental chambers, hydraulic grips, videoXtens / makroXtens extensometers, many coordinated accessories
• Operation: with standard PC or laptop; testControl II electronics; testXpert III system configuration builder
• Design: modular load-frame with T-slots, flexurally stiff hollow profile with guide-cylinder for precise guidance
• Safety: CE-compliant; EC Declaration of Conformity provided; complies with EN14119, EN14120 and IEC 60947
• Manufacture: development and production (mechanical, electronic, software and accessories) at ZwickRoell production facility in Germany
