Automation Sensorik Messtechnik precision position sensors

Measuring range: 3.5 mm
Measuring rate: 1 Hz - 208,000 Hz

High-precision non-contact absolute position measurement on up to 64 synchronized channels ZPS SensorZYGO's ZPS™ system measures absolute position using ultra-compact optical sensors ...

Measuring range: 100 mm - 600 mm

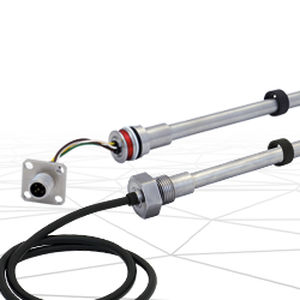

Temposonics MH-Series SLIM position sensors measure the absolute position of hydraulic cylinders in mobile applications. The Temposonics MH-Series SLIM sensor provides ...

Measuring range: 25 mm - 7,615 mm
Measuring rate: 0.3 kHz - 10 kHz
Power consumption: 1.2, 3.25 W

... plants – this sensor meets the strongest industry expectations and can achieve position feedback in many different types of applications. The extremely robust Temposonics® sensor ...

Measuring range: 50 mm - 2,540 mm
Supply voltage: 24 V
Ambient temperature: -40 °C - 75 °C

The EH sensor from MTS Sensors is an absolute magnetostrictive linear position sensor. The sensor can now be equipped with digital SSI- and CAN- output. It ...

Measuring range: 50 mm

Bernstein teachable magnetic slot sensors are unique for their one or two freely programmable, independent switching points. These are built for standard C- and T- slots, and fit one slot. If used for only one output, ...

Measuring range: 50 mm - 250 mm
Linearity: 0.2 % - 0.3 %
Ambient temperature: -20 °C - 80 °C

The draw wire sensors of the MPM Series are the preferred choice in applications which are characterized by fast movements, short displacements and limited space. This is achieved using miniaturized components combined ...

Measuring range: 100 mm - 1,000 mm
Linearity: 0.1 % - 0.5 %
Ambient temperature: -20 °C - 80 °C

The MP/MPW Draw-Wire Sensors, manufactured by Micro-Epsilon, are generally designed for usage involving industrial and mobile applications. Furthermore, this compact draw-wire displacement sensor, suitable ...

Cylinder sensors - Use on C-slot cylinders •Exact switch point detection on short-stroke cylinders •Precise position detection thanks to short travel distance •Reliable detection of weak magnetic ...

Measuring range: 1,000 mm
Linearity: 0.4 %
Ambient temperature: -15 °C - 60 °C

With precision potentiometer or optical encoder Specifications Output - Potentiometer 1 kΩ Voltage 0.5 ... 10 V Current 4 ... 20 mA, 2 wire Incremental encoder Resolution - Analog: essentially infinite Incremental ...

Measuring range: 2,000 mm
Linearity: 0.1 %
Ambient temperature: -20 °C - 85 °C

... Resolution - Analog: <0.002 % f.s. Incremental 10 pulses/mm, 25 pulses/mm SSI/CAN-Bus: up to 10 µm Sensing device - Precision potentiometer Optical encoder Magnetic absolute encoder Housing material - POM and ...

Measuring range: 2,000 mm
Linearity: 0.1 %
Ambient temperature: -20 °C - 85 °C

... Resolution - Analog: essentially infinite ADSI16: max. 16 bit f.s. Incremental 10 P/mm , 25 P/mm Sensing device - Precision potentiometer Optical encoder Magnetic absolute encoder Housing material - Zinc die ...

Measuring range: 8 mm - 15 mm

... with spring return series is used in applications where space is at a premium and a miniaturised displacement sensor with long life, high accuracy and a double guided push rod is required. The MM10 / ...

Measuring range: 100 mm - 1,000 mm

High accuracy, long life, open frame displacement sensors in 100...500 mm stroke lengths Measuring strokes 100…500 mm Long lifespan Very high resolution

Measuring range: 25 mm - 150 mm
Ambient temperature: -30 °C - 100 °C

... CD18 series have a guided push rod on both sides and are available in the measuring lengths 25…150 mm. of 25...150 mm. The sensors are fitted with a coupling (WKM8, 1 piece supplied) which facilitates mounting and compensates ...

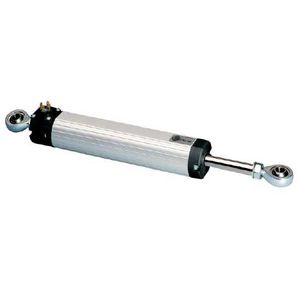

Measuring range: 50 mm - 900 mm

... , knee lever or extruder distances -Hydraulic cylinders Due to the technology employed in potentiometric displacement sensors, they always operate with a sliding contact system. Special processes are applied to give ...

... angle of rotation sensor - 8820 As an angle sensor that is both accurate and economical, this rotary potentiometer is suitable for all types of analog angle measurement up to 350°. Typical fields ...

Measuring range: 14, 103 mm

Inductive Linear Positioning Sensors The LPD series inductive linear positioning sensors can detect linear movement and position of metal objects. The coreless method improves detection ...

Measuring range: 0 mm - 15 mm

... optical light. Afterwards a CMOS linear sensor was added as the light-sensitive element to enable visual perception for workpiece position. These functions enable the K1G to detect small variations that ...

Measuring range: 10 mm
Ambient temperature: -25 °C - 70 °C

Absolute precision transducer with central mounting, durable because contactless measurement; completely encapsulated by a robust housing, temperature-resistant precision due to supplementary regulation ...

Ambient temperature: -40 °C - 85 °C

Absolute potentiometric rotary sensor. Precise, compact and inexpensive. Simple installation and adjustment Precise, compact and inexpensive potentiometric rotary sensor. Simple installation and adjustment • ...

Ambient temperature: -40 °C - 100 °C

Absolute high-precision potentiometric rotary sensor, synchro housing 11 High-precision potentiometric rotary sensor, synchro housing 11 Precision ...

... mechanical position sensors detect one or two positions within a single, compact electromechanical component. Two independent commutations can sense two previously ...

... accurate non-contacting position sensors. The 8360’s low profile and throughhole design make it desirable for applications like steering wheel and boom angle, where space is limited and the sensor ...

The 9600 Series Linear Position Sensor, is designed for a variety of space limited feedback applications that require high accuracy. It is ideally suited for Industrial, vehicular, appliance, machine ...

Measuring range: 50 mm - 1,000 mm
Measuring rate: 1 Hz - 1,000 Hz
Ambient temperature: -40 °C - 125 °C

Magtrol’s line of Displacement Transducers provide contactless measurement of absolute piston position in hydraulic and pneumatic cylinders and other applications. Their robust construction, large insensitivity ...

Measuring range: 6 m - 42.5 m

The SX135 Long Range Draw Wire Sensors are manufactured by WayCon Company. The sensors are made of stainless steel. They are applied in humid and moderate corrosive environmental conditions. These ...

Measuring range: 150 mm - 750 mm
Linearity: 0.1 %
Supply voltage: 0 V - 30 V

Draw wire sensors are low-cost, compact sensors which accurately measure the position or change in position of objects. Core components of a draw wire sensor ...

Measuring range: 4 mm
Measuring rate: 15 kHz - 30 kHz
Supply voltage: 10 V - 30 V

Due to their high resolution laser sensors are ideal for non-contact precision measurement of distance, route and position. Through an advanced analysis method the electronics of the ...

Measuring range: 10, 25 mm
Measuring rate: 4 kHz

Non-Contact Laser Triangulation Sensors - High-Performance Lasers The range of precision laser triangulation sensors that are fully Orbit Enabled are fully compatible with all Solartron ...

Measuring range: 500 µm - 10,000 µm
Measuring rate: 100 Hz - 35,000 Hz
Supply voltage: 10 V - 36 V

Eddy current sensors detect the distance or the change to metal objects without contact, dynamically and extremely accurately. The TX electronics which are specially adapted to the respective sensor calculate ...

Measuring range: 0 mm - 45 mm

■ contactless distance measurement due to non-contact measuring principle for measuring ranges up to 45 mm ■ highest precision in difficult industrial environments ■ resistant to contamination, high temperatures and ...
