ElektroPhysik precision thickness gauges

Measuring range: 3 µm - 35,000 µm
Measurement accuracy: 0.75 µm
Measuring rate: 1 Hz - 50 Hz

... br>
Product information
The MiniTest 700 series comprises three models for non-destructive coating thickness measurement on ferromagnetic and conductive substrates: MiniTest 725 (basic, integrated sensor), MiniTest ...

Measuring range: 0 µm - 100,000 µm
Resolution: 0.1 µm - 100 µm

... for a wide range of tasks in the field of coating measurements. The non-destructive measurement covers the following measuring range: • 0 – 50 mm for non-magnetic coatings on steel • 0 – 100 mm for insulating coatings on non-ferrous ...

Measuring range: 0 mm - 3 mm
Resolution: 0.5 µm
Weight: 80 g

... Product overview
The MiniTest 70 is a pen‑format coating thickness gauge with an integrated sensor for non‑destructive measurement of non‑magnetic coatings (paints, plastics, chrome, etc.) on ferromagnetic substrates ...

Measuring range: 0 mm - 100 mm
Weight: 310 g
Ambient temperature: -10 °C - 60 °C

... advanced and unique in terms of precision and reproducibility thanks to SIDSP sensors State of the art for coating thickness measurement The coating thickness gauge MiniTest 7400 ...

Measuring range: 0 mm - 3 mm
Weight: 225 g
Ambient temperature: 0 °C - 50 °C

... installations and mining facilities

Weight: 850 g

... Overview
Handheld instrument for universal and precise measurement of organic coating thickness on substrates such as wood, plastics and metals. Suitable for single and multilayer coatings; enables measurement of unidentified ...

Measuring range: 0.02 mm - 2 mm
Resolution: 20, 10, 5, 2 µm
Weight: 400 g

... Overview
Universal coating thickness gauge using the wedge-cut method to measure organic coatings on metal, wood and plastics; suitable for single and multiple coatings.

Product information

• Measurement

Measuring range: 0 mm - 24 mm
Measuring rate: 20 Hz

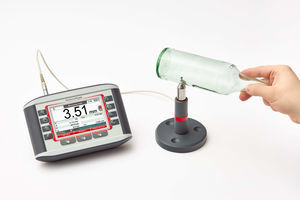

... : Making wall thickness measurement more convenient

An intelligent SIDSP sensor enables the MiniTest FH to provide high- precision measurement and reproducibility while compensating for the influence of temperatures ...
