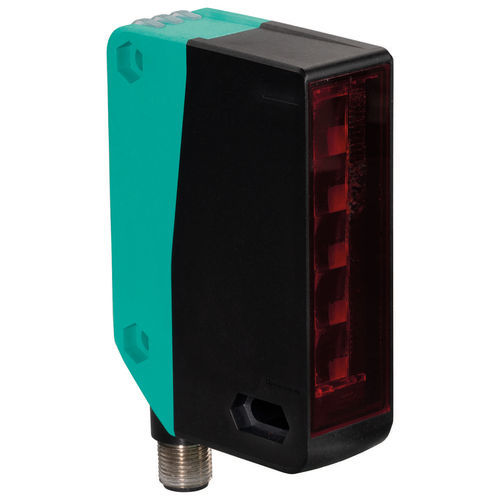

Sensor fotoelétrico retrorreflexivo OGR4000-R305-2EP-IO-V1

retangularluz vermelhaLED

Main BenefitsRetroreflective area sensor with five light beams in a standard photoelectric sensor enclosureBright, highly visible transmitter beams guarantee convenient alignment of the sensorReliable detection of all surfaces irrespective of the object textureReliable small part detection for very flat objects with an irregular shapeConstant object detection from 2 mm within the entire detection areaProduct DescriptionRetroreflective area sensor, red light, max. detection range 4 m, light field height 60 mm, IO-Link interface, 2 push-pull outputs, M12 plugGeneral SpecificationsEffective detection rangeStandard mode: 0 ... 4 m High resolution: 0 ... 2 mReflector distance0.2 ... 4 m H85-2 reflectorThreshold detection range4 mSensing rangesee tableReference targetH85-2 reflectorLight sourceLEDLight typemodulated visible red lightLED risk group labellingexempt groupField height60 mmField width12 mmObject sizeMinimum 2 mm, 3 mm, 5 mm, 8 mm, 10 mm; position-independent detection within detection rangeNumber of beams5Opening angle+/- 2 °Ambient light limitEN 60947-5-2Resolutionsee tableFunctional Safety Related ParametersMTTFd674 aMission Time (TM)20 aDiagnostic Coverage (DC)0 %Indicators/Operating MeansOperation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link modeFunction indicatorYellow LED:Permanently on: light path clearPermanently off: object detectedFlashing (8 Hz) - end of compensationControl elementsTeach-In keyControl elements5-step rotary switch for operating modes selectionElectrical SpecificationsOperating voltageUB10 ... 30 V DC IO-Link mode: 18 ... 30 V DCRipplemax. 10 %No-load supply currentI0< 35 mA at 24 V supply voltageProtection classIIIInterfaceInterface typeIO-LinkIO-Link revision1.1Device profileIdentification and Diagnosis - I&D Smart Sensor - SSP 2.1Process dataInput 8 Bit - switching signal 1 Bit - stability alarm 1 Bit - measurement value 6 Bit Output 2 Bit - sensor control function 1 Bit - evaluation control function 1 BitVendor ID1 (0x0001)Device ID0x101001 (1052673)Transfer rateCOM2 (38.4 kBit/s)Min. cycle time2.3 msSIO mode supportyesCompatible master port typeClass A , Class B (use 3-pole adapter or 3-wire cable)OutputSwitching typeThe switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-onSignal output2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protectedSwitching voltagemax. 30 V DCSwitching currentmax. 100 mAVoltage dropUd≤ 1.5 V DCSwitching frequencyfStandard mode: 500 Hz , High resolution: 250 HzResponse timeStandard mode: 1 ms , High resolution: 2 msConformityCommunication interfaceIEC 61131-9 / IO-Link V1.1.4Product standardEN 60947-5-2Approvals and CertificatesUL approvalE87056 , cULus Listed , class 2 power supply , type rating 1CCC approvalCCC approval / marking not required for products rated ≤36 VAmbient ConditionsAmbient temperature-40 ... 60 °C (-40 ... 140 °F) The permissible minimum ambient temperature during teach-in is -30 °C. The permissible temperature change after teach-in is ±20 K.Storage temperature-40 ... 70 °C (-40 ... 158 °F)Mechanical SpecificationsDegree of protectionIP67Connection4-pin, M12 x 1 connector, 90° rotatableMaterialHousingPC (Polycarbonate)Optical facePlastic paneMass94 gDimensionsHeight89 mmWidth25.8 mmDepth59.5 mmDegree of protection: IP67Connection: 4-pin, M12 x 1 connector, 90° rotatableHousing material: PC (Polycarbonate)Optical face: Plastic paneMass: 94 gDimensions: Height 89 mm, Width 25.8 mm, Depth 59.5 mm
