Redutor planetário WPF60 series

de eixos ortogonaisde eixo vazadode precisão

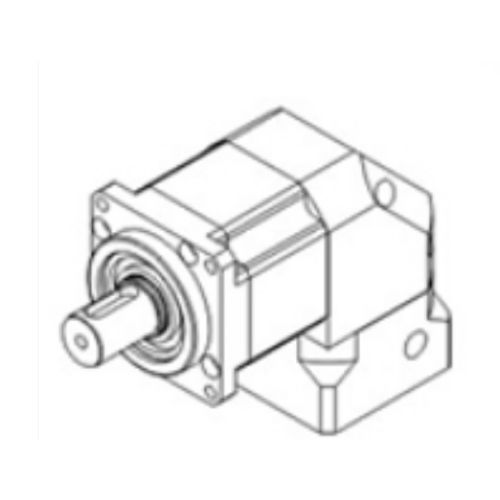

The output planetary carrier of the reducer adopts an integrated nut to eliminate axial clearance design. The front and rear bearings are distributed over a large span within the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load capacity, and excellent axial load capacity. The process of simultaneous machining and finishing is adopted to ensure extremely high coaxiality.Outline Dimension Drawing of the ReducerMain Technical ParametersLevelFirst stageSecond stageThird stageReduction Ratio3/4/5/7/1012/16/20/25/28/35/40/50/7080/100/125/140/175/200/250/700/1000Body Length150.5166.5182.5Maximum Radial Force400N500N800NMaximum Axial Force300N390N700NFull Load Efficiency≥94%≥92%≥88%Weight2.0Kg2.3Kg2.6KgService Life≥20000h≥20000h≥20000hRated Input Speed3000rpm3000rpm3000rpmMaximum Input Speed8000rpm8000rpm8000rpmMotor Power400C400C400CGear Precision Grade6 GB/T10095 – 20086 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25° ~ +90°–25° ~ +90°–25° ~ +90°Protection GradeIP65IP65IP65Lubrication MethodLong-life lubricationLong-life lubricationLong-life lubricationInstallation MethodFlangeFlangeFlangeCategory: GearboxTag: AC servo motor and driverTechnical Specifications / FeaturesIntegrated nut for zero axial clearanceHigh torsional rigiditySuper-strong radial and axial load capacityHigh coaxiality machiningReduction ratios: 3 to 1000 (varies by stage)Body length: 150.5–182.5 mmMax radial force: up to 800NMax axial force: up to 700NFull load efficiency: up to 94%Weight: 2.0–2.6 kgService life: ≥20000 hoursRated/max input speed: 3000/8000 rpmGear precision: 6 GB/T10095 – 2008Operating temperature: –25° to +90°CProtection: IP65Lubrication: Long-lifeInstallation: Flange
