Redutor planetário WPF42 series

de eixos ortogonaisde eixo vazadoflangeado

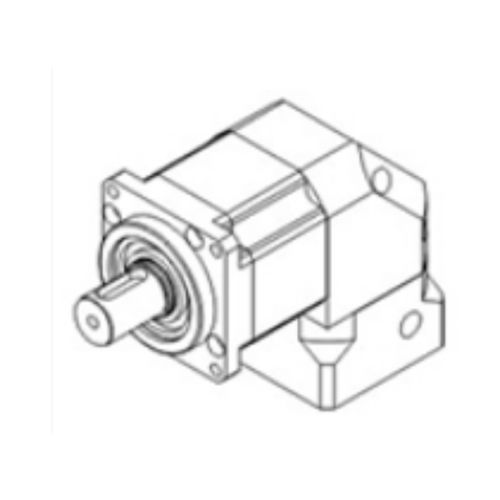

The output planetary carrier of the reducer adopts an integrated nut to eliminate axial clearance design. The front and rear bearings are distributed over a large span within the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load capacity, and excellent axial load capacity. The process of processing and completion in time is adopted to ensure extremely high coaxiality.Outline dimension drawing of the reducerMain Technical ParametersLevelFirst stageSecond stageReduction ratio4/5/816/20/25/32/40Body length72.284.2Maximum Radial Force280N320NMaximum Axial Force200N240NFull-load Efficiency≥90%≥86%Weight0.7Kg0.9KgService life≥20000h≥20000hRated input speed2500rpm3000rpmMaximum input speed4500rpm6000rpmGear precision grade6 GB/T10095 – 20086 GB/T10095 – 2008Operating temperature–25° ~ +90°–25° ~ +90°Protection gradeIP65IP65Lubrication methodLong-term lubricationLong-term lubricationInstallation methodFlangeFlangeCategory: GearboxTags: AC servo motor and driverTechnical Specifications / FeaturesIntegrated nut for zero axial clearanceHigh torsional rigiditySuper-strong radial and axial load capacityHigh coaxialityReduction ratios: 4/5/8 (1st stage), 16/20/25/32/40 (2nd stage)Body length: 72.2 mm (1st), 84.2 mm (2nd)Max radial force: 280N (1st), 320N (2nd)Max axial force: 200N (1st), 240N (2nd)Full-load efficiency: ≥90% (1st), ≥86% (2nd)Weight: 0.7kg (1st), 0.9kg (2nd)Service life: ≥20000hRated input speed: 2500rpm (1st), 3000rpm (2nd)Max input speed: 4500rpm (1st), 6000rpm (2nd)Gear precision: 6 GB/T10095 – 2008Operating temperature: –25° ~ +90°Protection grade: IP65Lubrication: Long-termInstallation: Flange
