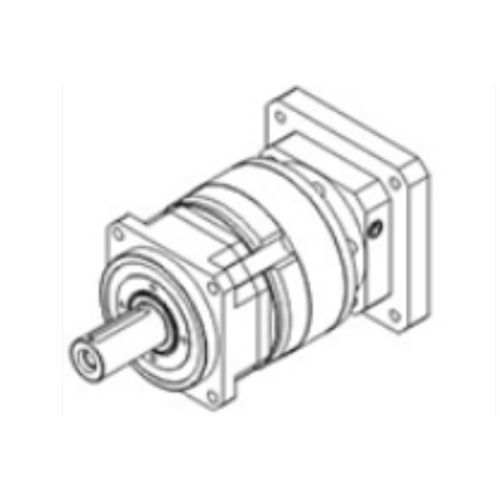

Redutor planetário P142 series

coaxialde eixo vazadoflangeado

The output planetary carrier of the reducer adopts an integrated nut to eliminate axial clearance design. The front and rear bearings are distributed over a large span within the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load capacity, and excellent axial load capacity. The process of processing and completion in time is adopted to ensure extremely high coaxiality.Outline dimension drawing of the reducerMain Technical ParametersLevelFirst stageSecond stageReduction ratio3/4/5/812/15/16/20/25/32/40/64Body length290334.5Maximum Radial Force10000N12200NMaximum Axial Force16000N21000NFull load efficiency≥96%≥94%Weight16.5Kg22.5KgService life ≥20000hRated input speed2500rpm2500rpmMaximum input speed4500rpm4500rpmMotor power3000C3000CGear precision grade6 GB/T10095 – 20086 GB/T10095 – 2008Operating temperature– 25° ~ + 90°– 25° ~ + 90°Protection gradeIP65IP65Lubrication methodLong-term lubricationLong-term lubricationInstallation methodFlangeFlangeCategory: GearboxTags: AC servo motor and driverTechnical Specifications / FeaturesIntegrated nut for eliminating axial clearanceHigh torsional rigiditySuper-strong radial and axial load capacityHigh coaxialityReduction ratios: 3/4/5/8 (1st stage), 12/15/16/20/25/32/40/64 (2nd stage)Body length: 290 mm (1st stage), 334.5 mm (2nd stage)Max radial force: 10000N (1st), 12200N (2nd)Max axial force: 16000N (1st), 21000N (2nd)Full load efficiency: ≥96% (1st), ≥94% (2nd)Weight: 16.5Kg (1st), 22.5Kg (2nd)Service life: ≥20000h (2nd stage)Rated/max input speed: 2500/4500rpmMotor power: 3000CGear precision: 6 GB/T10095 – 2008Operating temperature: –25° ~ +90°Protection: IP65Lubrication: Long-termInstallation: Flange
