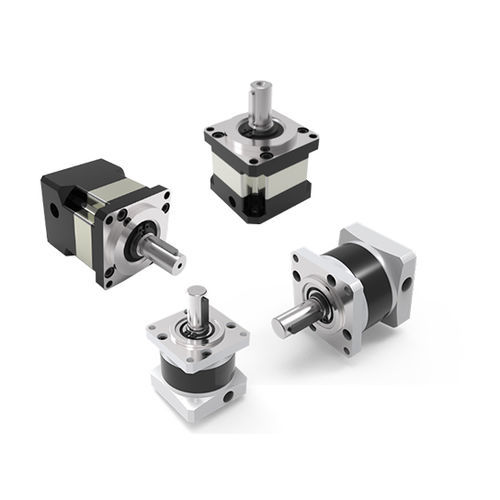

Redutor planetário PF160 series

coaxialde eixo vazado

The output planetary carrier of the reducer adopts an integrated nut to eliminate axial clearance design. The front and rear bearings are distributed over a large span within the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load capacity, and excellent axial load capacity. The process of processing and time completion is adopted to ensure extremely high coaxiality.Outline Dimension Drawing of the ReducerMain Technical ParametersStageFirst StageSecond StageThird StageReduction Ratio3/4/5/812/15/16/20/25/32/40/6480/100/120/125/160/200/256/512Body Length290334.5379Maximum Radial Force10000N12200N20000NMaximum Axial Force16000N21000N36000NFull Load Efficiency≥96%≥94%≥90%Weight17.5Kg23.5Kg27.5KgService Life≥20000h≥20000h≥20000hRated Input Speed2500rpm2500rpm2000rpmMaximum Input Speed4500rpm4500rpm5000rpmMotor Power3000C3000C3000CGear Precision Grade6 GB/T10095 – 20086 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25° ~ +90°–25° ~ +90°–25° ~ +90°Protection GradeIP65IP65IP65Lubrication MethodLong-term active lubricationLong-term active lubricationLong-term active lubricationInstallation MethodFlangeFlangeFlangeCategory: GearboxTag: AC servo motor and driverTechnical Specifications / Features:Integrated nut for zero axial clearanceHigh torsional rigiditySuper-strong radial and axial load capacityHigh coaxialityReduction ratios: 3/4/5/8 (1st), 12/15/16/20/25/32/40/64 (2nd), 80/100/120/125/160/200/256/512 (3rd)Body lengths: 290mm, 334.5mm, 379mmMax radial force: up to 20000NMax axial force: up to 36000NFull load efficiency: up to 96%Weight: up to 27.5KgService life: ≥20000hRated/max input speed: up to 5000rpmMotor power: 3000CGear precision: 6 GB/T10095 – 2008Operating temperature: –25° ~ +90°Protection: IP65Lubrication: Long-term activeInstallation: Flange
