BZH Measuring direction horizontal, up to 6300 N
The web tension load cells of the series BZH are of a compact pillow block design and suitable for a variety of applications.
The sensors basically consist of two mounting plates which are connected by measuring elements. The mounting plates are designed to accommodate pillow block bearings of the following manufactures: INA, FAG, SKF and NSK.
The measuring elements function according to the double beam principle. The acting forces are captured by strain gauges applied to the measuring elements.

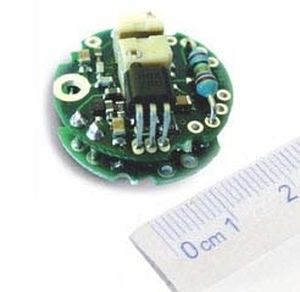

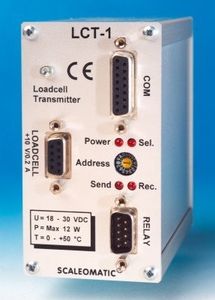

HAEHNE offers for all its sensors a corresponding range of amplifiers to condition the measuring signal and deliver the bridge voltage supply. The signals at the output terminals of the amplifier are proportional to the acting radial force. They can be digitally displayed or used as actual values in a closed control loop.
Features
Compact load cell design
Easy modification to different pillow block bearing designs and sizes
High overload protection utilising mechanical stops
High resonant frequency
|
|
DS Europe produces load cells with built-in analog and digital electronics.
Measuring ranges:from 0 to 6Kg up to 500tons max.
Outputs: CANOpen, RS485, RS422, 5V, 10V, 4-20mA, 2mV/V.
Advantages: high resolution (A/D converter 24bit max.), high sampling rate (from 7,5 upt to 960Hz max.), electrical noise protection, compactness, digital alarms, digital filter, zeroing, easy to service (overload memory).
Applications: automation, textile machines, medical machines, machine tools, presses, vehicles, weighing, food machines, quary machines, agricolture machines, research, machines working paper-wood-plastics-rubber etc.
|
|
|
|
|
|
-Robust technology and design
-High tolerance of up to 1.000 % overload
-Plug-and-play installation
-High accuracy, High resolution
-Hermetically sealed to IP68
-Interfaces: RS485, Profibus DP, DeviceNet, 4-20 mA, 0-10 V
-Digital filters
-ATEX certified
-3 years warranty
-Patented worldwide
The shockproof digital load cell is based on a capacitive measurement principle where a non-contacting ceramic sensor is mounted inside the load cell body. As the load cell contains no moving parts and the sensor is not in contact with the load cell body, the load cell tolerates shocks, torsion, and very high overloads and sideloads. Therefore, the mechanical installation of the load cell can be done without expensive and complicated mounting kits and overload protection devices.
The electrical installation of the digital load cell is pure plug-and-play as the signal from the non-contacting sensor is directly converted, compensated and calibrated by a microprocessor to a digital load cell output in grams, kilograms, or Newton. Measurements and status codes are transmitted as RS485 data on a single wire coaxial cable (RG-58) which may be up to 100 meters long.
The technology and mechanical design of the Eilersen load cells is covered worldwide by a number of patents.
|
|
DS Europe manufactures load cells with built-in CE marked electronics with analog or digital outputs.
All load cells with non amplified output 2mV/V have a built in calibration circuitry that electrically simulates a known value of force shown in a certificate ( making It easy and quick to calibrate with the external electronics getting the signal ).
Series 500QD single point load cells Ranges (tension and compression): from 0 up to ±2 ... 2000Kg FS.
Built-in electronics (option): analog or digital outputs.
Environmental protection: IP65.
Compensated against off-center forces.
Series AP7000 compact column load cells Series AP7000 tension and compression load cell.
Ranges: from 0 up to 250-500Kg 1-3-5-10-25-50-100 tons.
Built-in electronics (option): analog or digital outputs.
Environmental protection: IP65.
|
|

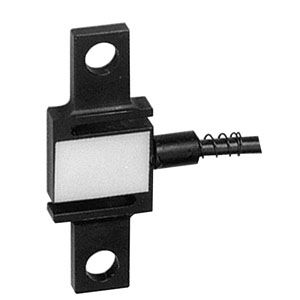

DS Europe produces general purpose miniaturised load cells.
Measuring ranges: 0 to 3 up to 2000Kg.
Output: 2mV/V.
Applications: automation, medical machines ( dialisis, radiology, blood transfusion machines, dentist tools, hospital beds, stabilometry platforms etc.), textile machines, machines working paper-rubber-plastics, weighing, machine tools and wherever is required compactness.
|
|
Catridge Style Load Cells
Ultra Cartridge-Style Load Cells provide a highly responsive linear output signal for measuring, monitoring and controlling web tension in continuous processes. They utilize a full-bridge semiconductor strain gages and a temperature compensation network for consistent accuracy and performance. For application flexibility and convenient machine installation, Ultra Cartridge Style Transducers are available for stationary shafts, for wire or narrow webs, and with flange and pillow block mounting kits.
|
|
Ultra ISC Tension Load Cell : Web Tension Control
The Ultra ISC is a tension transducer that directly outputs a +/- 10 VDC signal. CMC offers an ISC version for all models of our Ultra tension transducers. All Ultra ISC transducers include an Integrated Signal Conditioner (ISC) that is embedded directly in the "Ultra" type tension load cells. This is accomplished by extending the connector housing one inch and inserting a proprietary integrated amplifier designed by CMC.
|
|
