Compression load cell ZM Series
pancake typesingle-axisstrain gauge

compression load cell
compression load cell
Add to favorites
Compare this product


Characteristics

Type
compression
Form
pancake type
Number of axes
single-axis
Technology
strain gauge
Output signal
analog
Applications
weighing, for hopper, for silos, for mixers, for testing machine
Other characteristics
high-sensitivity, high-precision, with amplified output, stainless steel, steel construction, compact, custom, custom-made, precision, aluminum, calibrated, IP67, high-capacity, small, low-capacity, economical, IP65, with integrated amplifier, cost-effective
Rated force

Min.: 0.1 kN

Max.: 100 kN

Rated load

Min.: 10 kg
(22.05 lb)

Max.: 10,000 kg
(22,046.23 lb)

Length

Min.: 26 mm
(1 in)

Max.: 115 mm
(4.5 in)

Height

Min.: 13.4 mm
(0.53 in)

Max.: 60 mm
(2.36 in)

Description

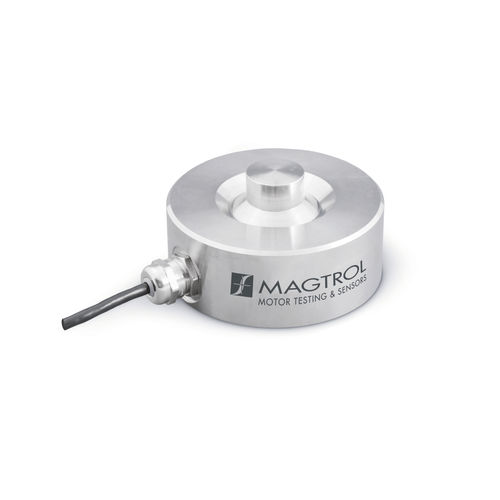

Magtrol's ZM Series Force Transducers are designed to measure static and dynamic pressure forces. They are characterised by their small dimensions. Manufactured in stainless steel or high-resistance aluminum, these transducers can be used in a wide variety of applications. In particular, the stainless steel versions with a high degree of protection can be used everywhere without restriction, even in harsh environments. The sensor element consists of a diaphragm body equipped with metal foil strain gauges, which forms a hermetically sealed chamber filled with dry nitrogen. In standard mounting, the transducers are fixed with screws on a flat surface. The force is introduced vertically (without transverse force) via the universal ball joint, either directly or via a metal adapter interface. All Magtrol ZM Series transducers are supplied with a 1.5 m long connection cable with loose ends. Optionally, they can be supplied with a built-in amplifier (ZM‑E). Then, an Output Signals of 0 ... 10 V DC or 4 ... 20 mA can be selected.
