Bearing force transducer DB-DA / DB-DC series

tension/compressionstrain gaugeanalog

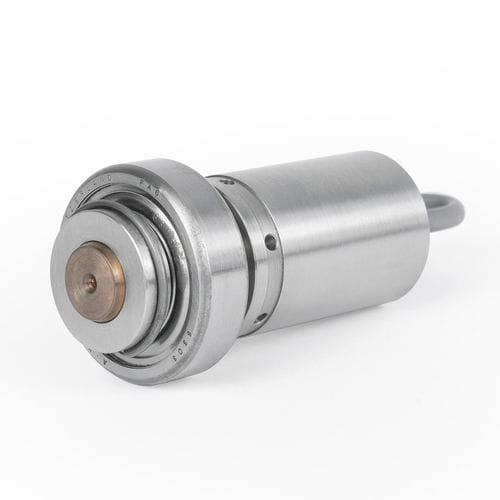

Magtrol DB-DA and DB-DC transducers are designed for measuring radial forces in ball bearings. Available in several diameters and temperature ranges, these transducers incorporate strain gauge technology and provide a signal output proportional to the force to being measured. Features Nominal capacity: DB-DA: 50 N, 100 N, 200 N, 350 N and 750 N DB-DC: 1200 N Built-in overload protection up to 10× nominal force DB-DA; 2× overload nominal force DB-DC (no mechanical protection) Combined error due to nonlinearity and hysteresis: < ± 0.1% (DB-50-DA < ± 0.2%) Hermetically sealed; IP 67 protection class Three temperature versions available: 60 °C, 100 °C and 160 °C Three bearing diameter capabilities: Ø17 mm, Ø20 mm and Ø25 mm Rust-resistant metallic construction Easy to install Applications This transducer is ideally suited for belt, paper or textile tension control and for other measurement of radial forces on rotation cylinders. When connected to a signal conditioner, this transducer is an essential element for highly accurate tension control regulation.
